BMW OBD2 Adapter Cable for 20-Pin to 16-Pin Diagnostic Port Connection

This specialised adapter cable serves a clear purpose: it allows a universal 16-pin OBD2 diagnostic tool to interface with the older 20-pin onboard diagnostic port found on many BMW models. Without this adapter, accessing the vehicle's engine control unit (ECU) for reading fault codes, checking live data, or performing system scans would be impossible with standard equipment. It is a crucial link for mechanics, enthusiasts, and roadside assistance providers who need to diagnose issues on these specific BMWs, converting a proprietary connection into a widely compatible one. The product is built to operate within the standard parameters of a vehicle's 12-volt electrical system and is rated for use in typical workshop or roadside temperature conditions.

Features and Construction

This adapter is defined by its specific compatibility and electrical specifications, providing a straightforward bridge between two different connector standards.

Material and Build

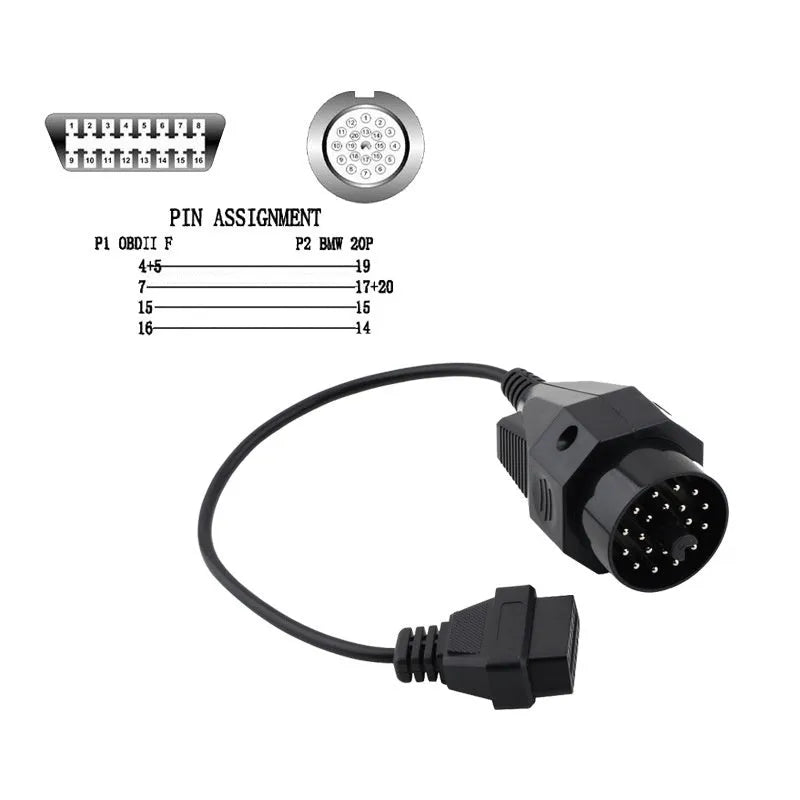

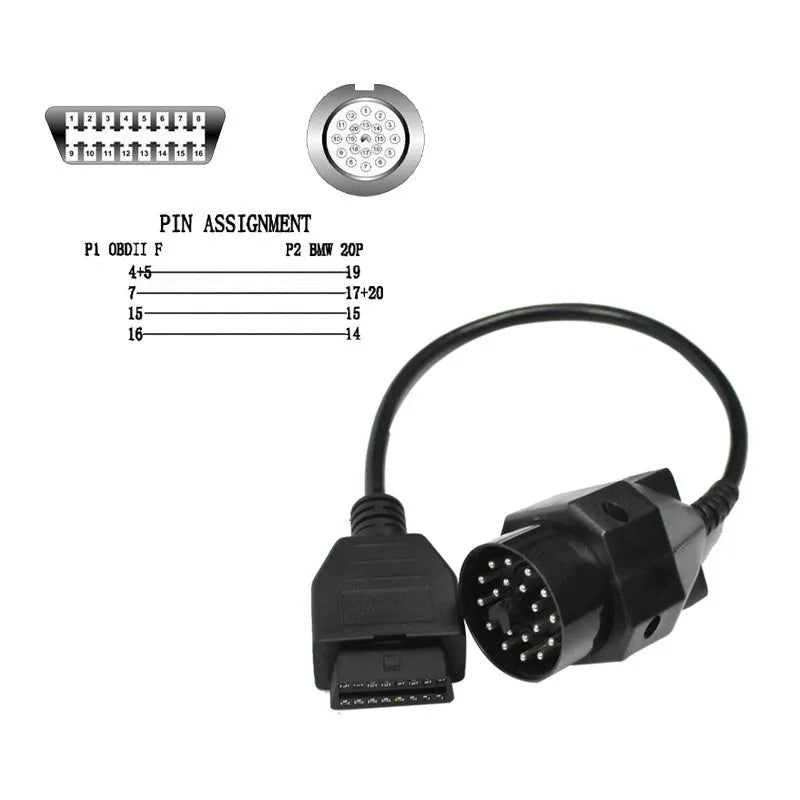

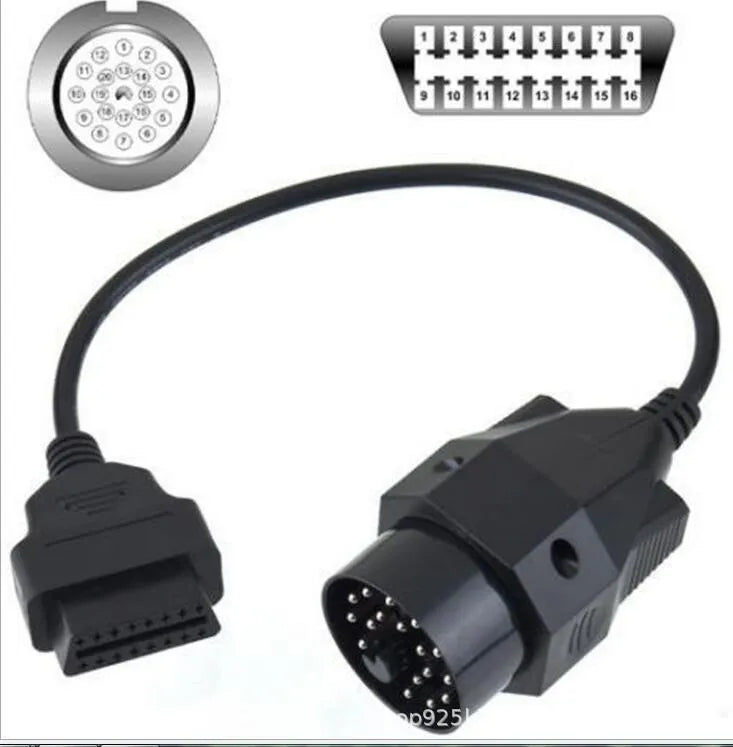

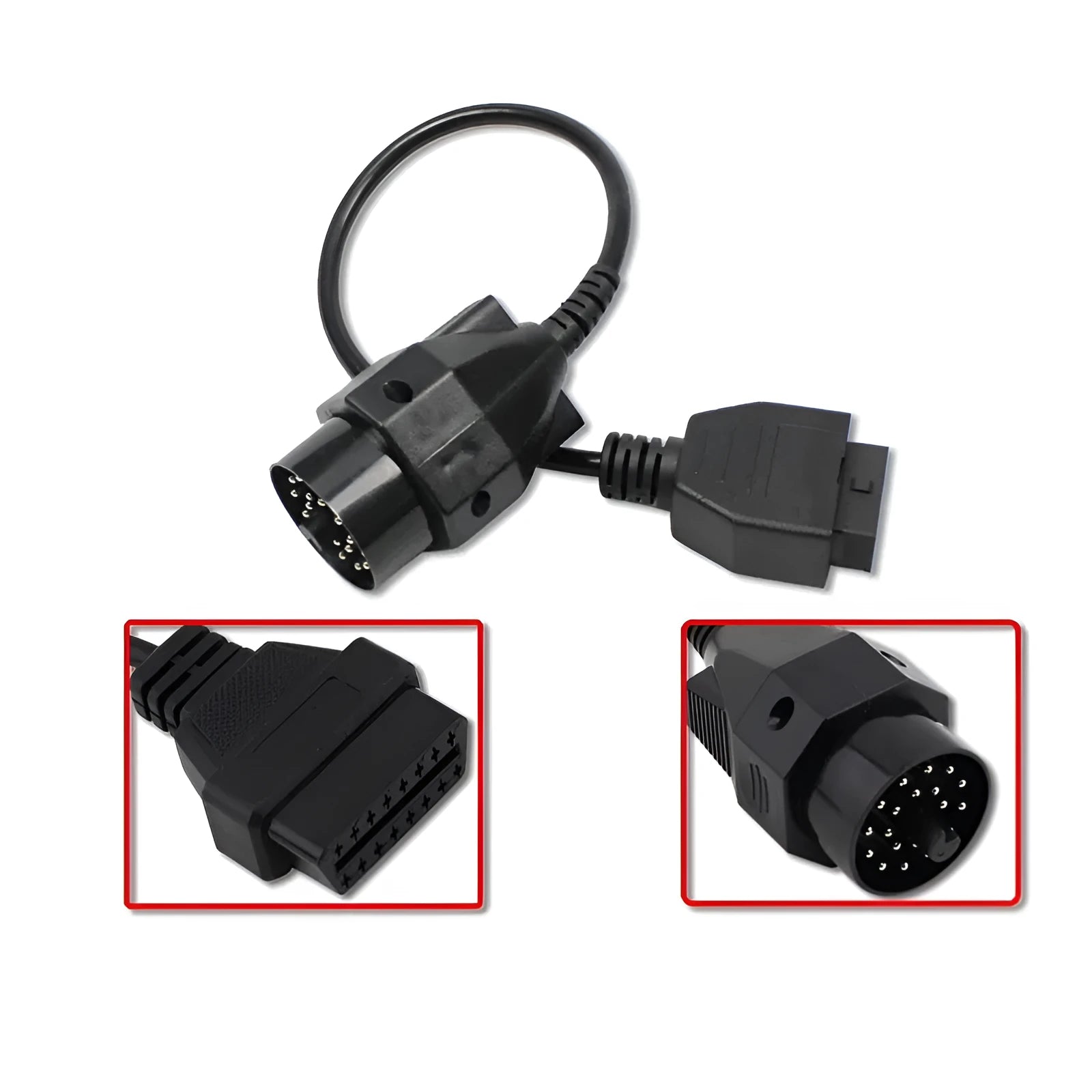

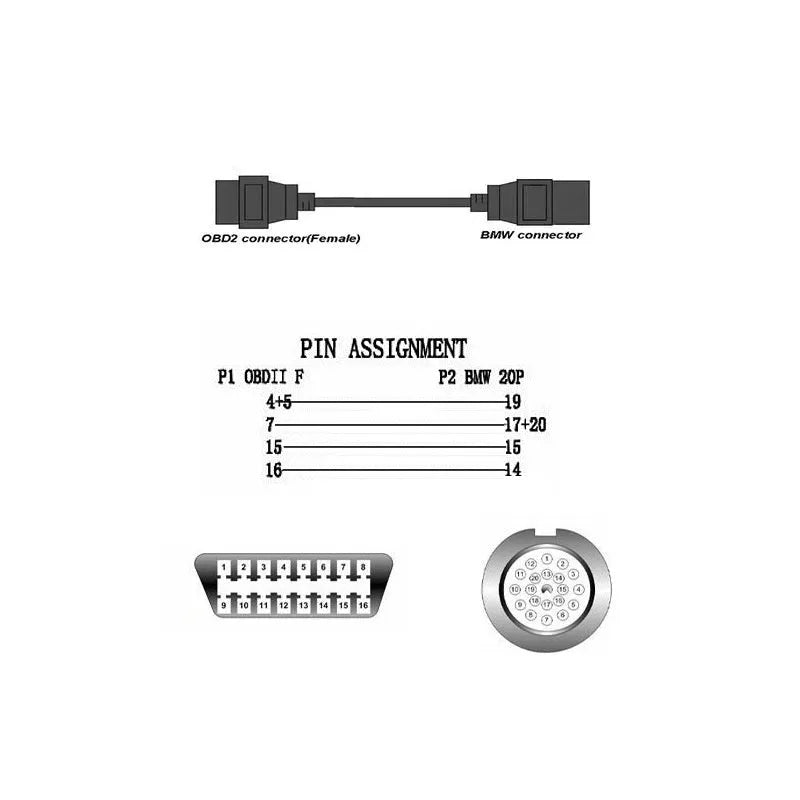

The core component is a set of connecting cables housed within a protective sheath, terminated with a 20-pin male connector on one end and a 16-pin female OBD2 port on the other. The construction is focused on reliable signal transmission for diagnostic communication between the car's computer and the scanning tool. The materials are chosen for durability in an automotive environment, though the exact composition of the wiring or housing is not detailed in the provided source.

Size and Practical Fit

The source specifies the operating temperature limit of 45 degrees Celsius, indicating its suitability for use in most ambient conditions, from a cool garage to a warm engine bay. The adapter is designed for a 12-volt system, matching standard car battery output. While the physical length of the cable is not stated, its primary function is to provide a secure connector conversion rather than extended reach, suggesting a compact form factor suitable for the confined space around a vehicle's dashboard.

Uses and Placement

This adapter unlocks diagnostic capabilities for a range of users and scenarios, centred around BMW vehicles with the 20-pin port.

Event or Professional Use

For professional automotive technicians and garages, this adapter is an essential tool when working on eligible BMW models. It integrates seamlessly into a workshop's existing suite of standard OBD2 diagnostic equipment, avoiding the need for expensive, brand-specific scanners. It enables comprehensive system checks, emission testing preparations, and accurate fault code retrieval, which are fundamental to professional repair and servicing workflows.

Everyday Home Use

For the DIY car owner or hobbyist, this cable makes basic vehicle diagnostics accessible. By connecting a affordable generic OBD2 code reader, an owner can identify check engine light warnings, clear minor fault codes after repairs, or monitor basic system parameters. This can lead to informed discussions with mechanics, verification of repair work, or simple peace of mind about the vehicle's status, all without specialist BMW tools.

Benefits and Buying Value

The value of this product lies in its specific functionality, reusability, and the practical independence it offers.

Reuse and Low Maintenance

As a passive adapter with no internal electronics, it requires virtually no maintenance and offers long-term reuse. Once purchased, it becomes a permanent part of a toolkit, usable every time the same BMW or another compatible model needs diagnostics. Its robust design for automotive environments suggests it can withstand repeated plugging and unplugging, providing ongoing value from a single purchase.

Why Choose This Product

Choosing this adapter provides a cost-effective and direct solution for a known compatibility problem. Instead of sourcing a rare and potentially costly BMW-specific scanner, it leverages the more common and versatile 16-pin OBD2 tools already on the market. Its specification for the correct voltage and a clear temperature operating range provides confidence in its safe and correct application for the intended BMW models.
