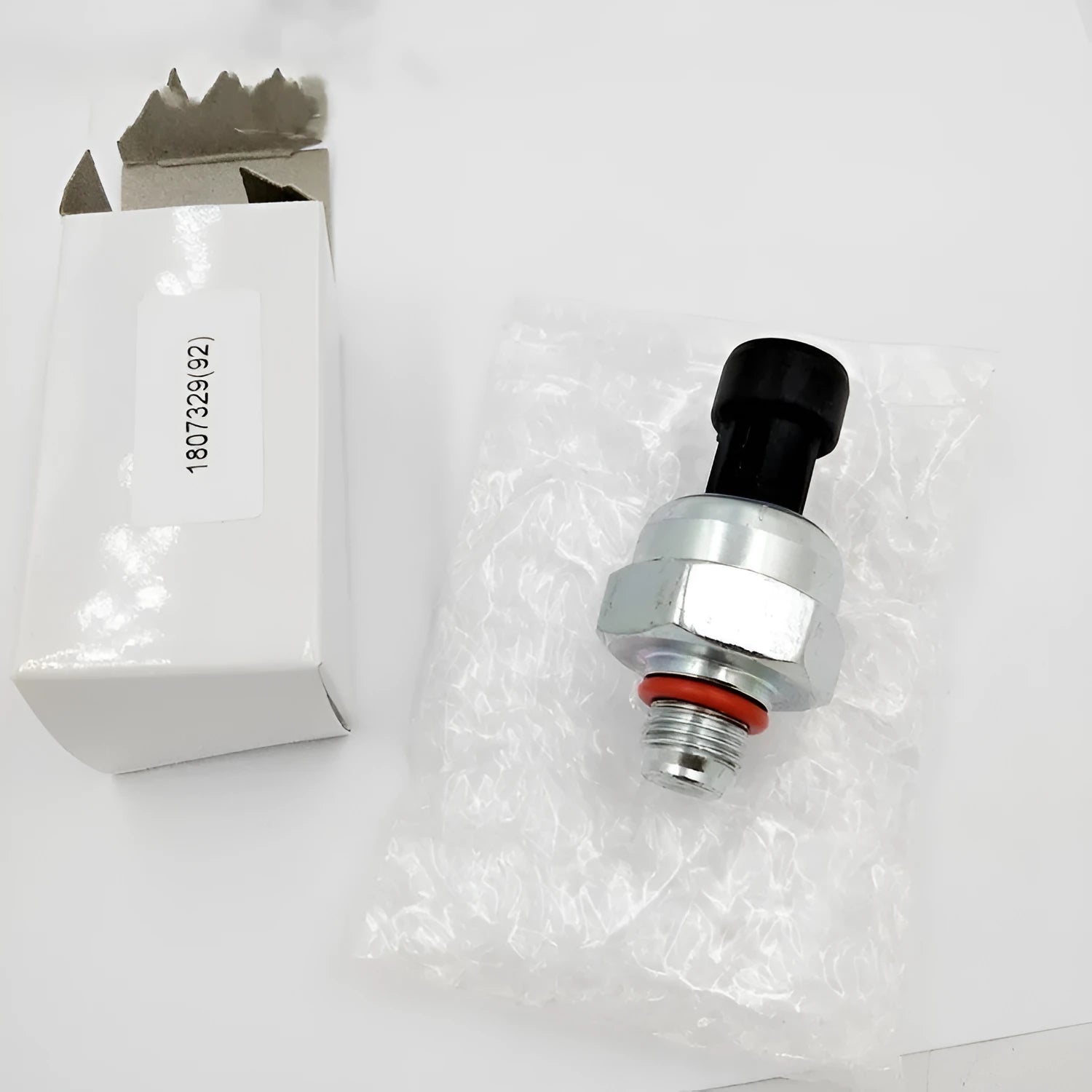

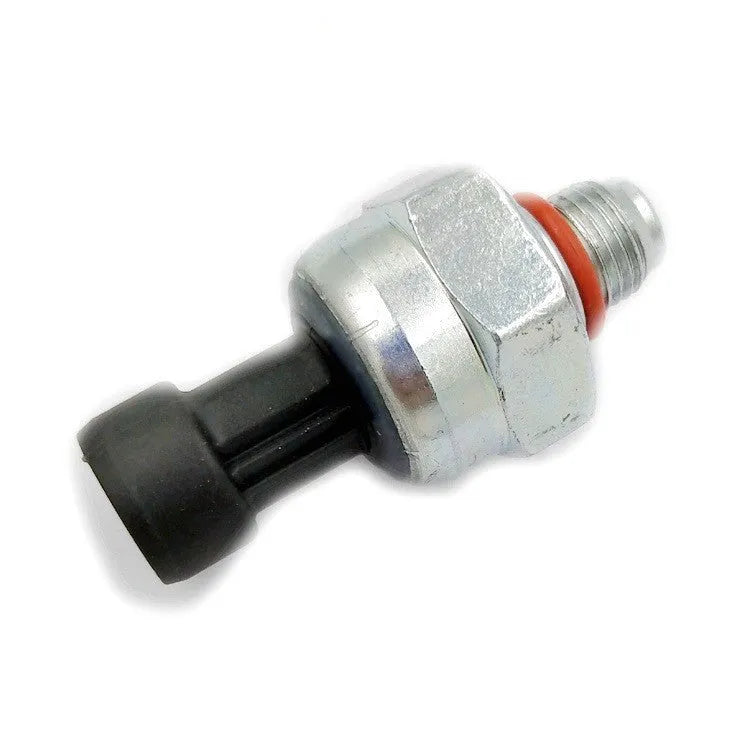

Ford Common Rail Fuel Pressure Sensor F6TZ-9F838-A for F4 and F6 Engines

This F6TZ-9F838-A is a fuel pressure sensor designed as a direct replacement component for Ford engines, specifically those within the F4 and F6 series. Its primary function is to monitor the pressure of diesel fuel within the vehicle's common rail fuel injection system. This real-time pressure data is communicated to the engine control unit (ECU), allowing for precise calculation of fuel delivery and injection timing. Accurate pressure sensing is crucial for maintaining efficient combustion, optimal engine performance, and meeting emissions standards. This part serves as a necessary component for the fuel management system when the original sensor requires replacement.

Features and Construction

This sensor is specified as a direct OEM replacement, meaning it is engineered to match the fit, form, and function of the original Ford part number F6TZ-9F838-A. Its construction is focused on providing a reliable electrical signal corresponding to the mechanical pressure within the fuel rail.

Material and Build

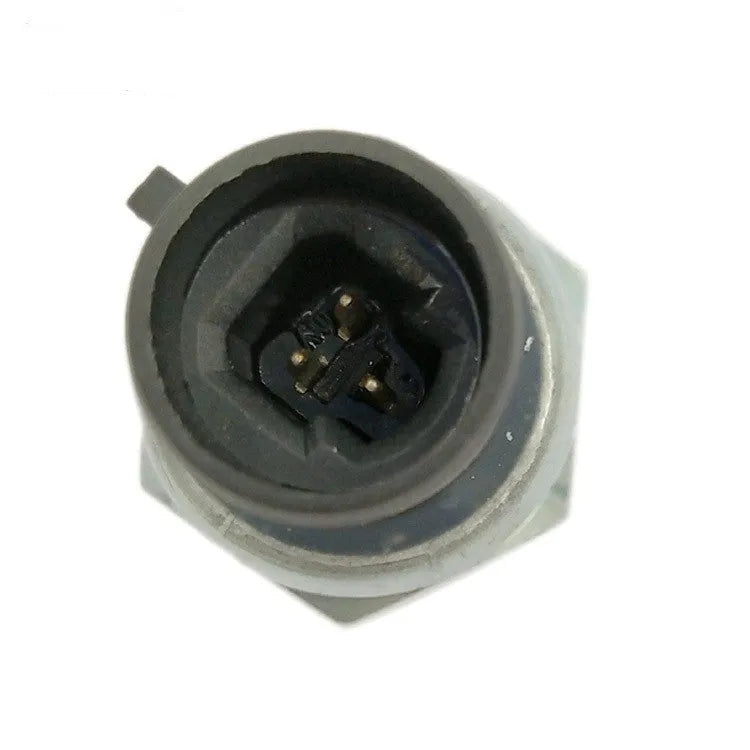

The sensor's construction includes a housing that contains the sensitive pressure-sensing element, typically a diaphragm, and an integrated electrical connector. The source text confirms the package includes a 'connecting line', which is part of the sensor assembly for interfacing with the vehicle's wiring harness. The exact materials used for the housing and internal components are not specified by the manufacturer in the provided data.

Compatibility and Fit

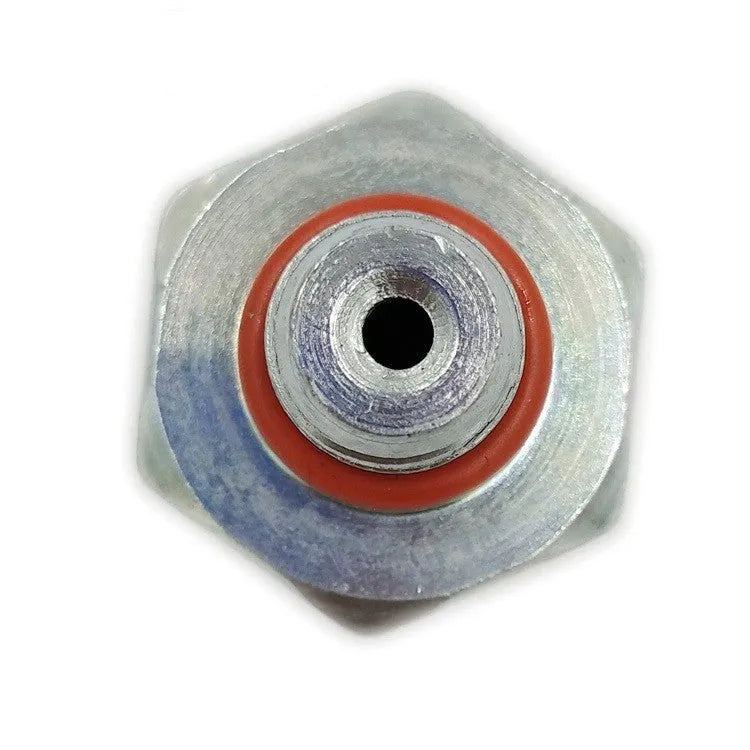

This sensor's key specification is its compatibility with Ford F4 and F6 series engines utilising a common rail fuel injection system. It is designed to thread directly into a port on the fuel rail, with the electrical connector mating to the vehicle's existing loom. Ensuring the correct part number match is essential for proper fitment and signal communication with the vehicle's specific ECU programming.

Uses and Placement

The F6TZ-9F838-A sensor has a specific and technical application within the engine bay of compatible Ford vehicles. Its correct operation is integral to the vehicle's fuel management strategy.

Professional Garage Use

This part is most commonly installed by automotive technicians during scheduled maintenance or diagnostic repairs. It is used to address issues indicated by diagnostic trouble codes (DTCs) related to fuel pressure, such as poor performance, hard starting, or increased fuel consumption. Replacement is undertaken when testing confirms the original sensor is providing inaccurate readings or has failed.

Function in the Fuel System

Installed on the common fuel rail, the sensor continuously measures the high pressure of the diesel fuel held there before injection. This data allows the ECU to regulate the high-pressure fuel pump's output and determine the precise duration for which the fuel injectors should open. This ensures the correct amount of fuel is delivered for efficient and clean combustion under all engine loads and speeds.

Benefits and Buying Value

Choosing the correct sensor is about restoring the designed function of a critical engine management system component.

System Restoration and Low Maintenance

Replacing a faulty sensor with this OEM-specified part restores accurate fuel pressure feedback to the ECU. This allows the engine management system to operate as designed, which can resolve drivability issues and help maintain fuel efficiency. Once installed correctly, the sensor itself requires no routine maintenance.

Why Choose This Product

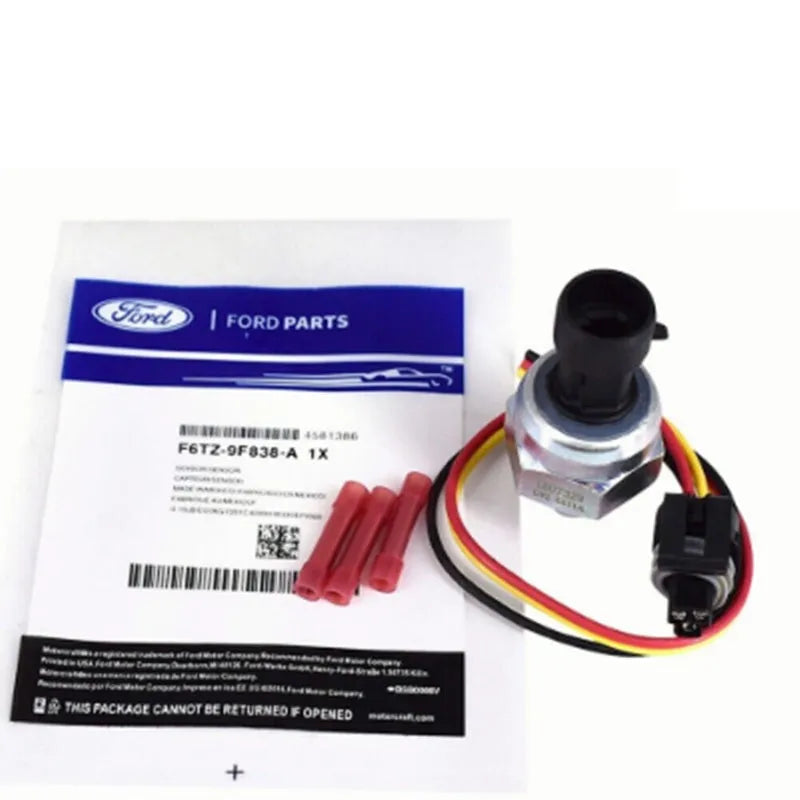

This part is selected for its specified compatibility with Ford F4 and F6 engines. The inclusion of the connecting line as part of the assembly ensures you have the necessary components for a complete replacement. It is a practical solution for mechanics and experienced DIY enthusiasts needing to address a confirmed fuel pressure sensor fault on these specific Ford engine models.
