Mini Ultrasonic Cleaning Machine with Heating for Vinyl Records, PCBs and 3D Printing Parts

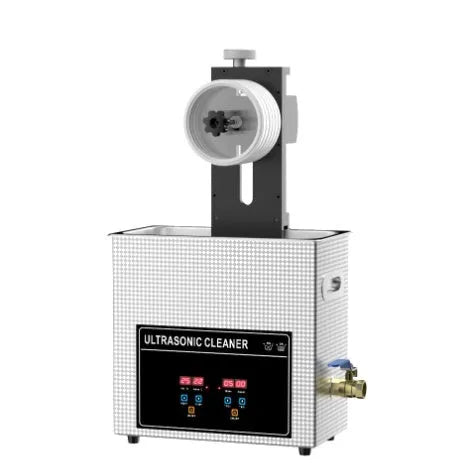

This compact ultrasonic cleaning machine provides a specialised solution for removing accumulated dust, scale and embedded dirt from delicate flat items and intricate components. Using 40kHz ultrasonic frequency, it generates microscopic cavitation bubbles in the cleaning fluid that agitate and lift contaminants from surfaces without harsh abrasion. The integrated heating element allows the water temperature to be adjusted between 20°C and 80°C, which can help to soften residues and improve cleaning fluid effectiveness for certain materials. With a focus on hobbies and light industrial applications, its single-slot bracket design securely holds vinyl records, printed circuit boards (PCBs) and 3D-printed objects during the automated cleaning cycle, which can be set from 1 to 30 minutes for precise control.

Features and Construction

Built for consistent performance in workshop or studio environments, this cleaner combines ultrasonic technology with practical temperature management. Its construction is centred around a dedicated cleaning chamber and a straightforward control interface, prioritising functional operation for maintenance tasks on collectables and electronic parts.

Material and Build

The machine's housing uses robust metal and plastic composites to contain the internal components and withstand regular use. The cleaning chamber and the included single-slot bracket are constructed from materials compatible with ultrasonic energy transmission and common cleaning solutions, typically stainless steel or similar corrosion-resistant alloys in this product category. Three internal oscillators convert electrical energy into the 40kHz ultrasonic waves that create the cleaning action, while the 0.3kW heating element provides adjustable thermal support. The unit operates on standard 220V mains power and is supplied with a region-specific plug for your local electrical outlet.

Size and Practical Fit

With external dimensions of 460mm in width, 330mm in depth and 400mm in height, the machine has a compact footprint suitable for benchtop placement. The primary cleaning chamber inside measures 325mm by 270mm by 175mm, offering a 6.5-litre fluid capacity. The removable cleaning bracket features a groove measuring 300mm by 150mm by 150mm, designed to hold one flat item securely upright during operation. Weighing 6.4kg, the unit is portable enough to be moved when necessary but remains stable during use.

Uses and Placement

This ultrasonic cleaner is specified for applications involving flat, delicate items or small components that benefit from gentle, thorough contamination removal. Its heated ultrasonic action addresses common maintenance challenges across several hobbyist and light technical fields.

Event or Professional Use

For vinyl record collectors and dealers, the machine offers a method to clean records of dust and grime that can affect sound quality, with the bracket holding records safely. In electronics repair or manufacturing settings, it can clean flux residue and particulate matter from PCBs after soldering. The temperature control allows adaptation to different cleaning chemistries suitable for electronic components, while the timer ensures consistent process times for batch work.

Everyday Home Use

For home hobbyists engaged in 3D printing, the cleaner assists in post-processing by removing support material residue and dust from printed parts. Modellers can use it to clean miniature components, and it can maintain other collectables like vintage photography plates or glass negatives. The single-slot design is straightforward for individual item processing, and the clear chamber dimensions help users gauge fluid quantities for economical operation.

Benefits and Buying Value

This product provides a targeted cleaning capability that replaces manual brushing or rinsing for specific item types. Its value lies in combining ultrasonic action with temperature adjustment in one accessible unit, backed by measurable specifications for informed use.

Reuse and Low Maintenance

The machine is designed for repeated use with refillable cleaning solutions, avoiding disposable wipe or spray costs over time. The stainless steel chamber and bracket are wipe-clean and resist degradation from common cleaning fluids. With no complex filters or consumables mentioned, ongoing maintenance is minimal, focusing on fluid changes and occasional descaling if hard water is used.

Why Choose This Product

This cleaner is selected for its clear specification set—40kHz frequency, 20-80°C range, single-slot bracket—which allows buyers to match it directly to their item dimensions and cleaning requirements. The inclusion of a heating function distinguishes it from basic ultrasonic baths, potentially improving results on greasy or polymerised soils. The specified voltage and plug options ensure compatibility with local power supplies, reducing the need for external adaptors.
