Parallel Charge Board for Simultaneous Balance Charging of Four Lithium Battery Packs

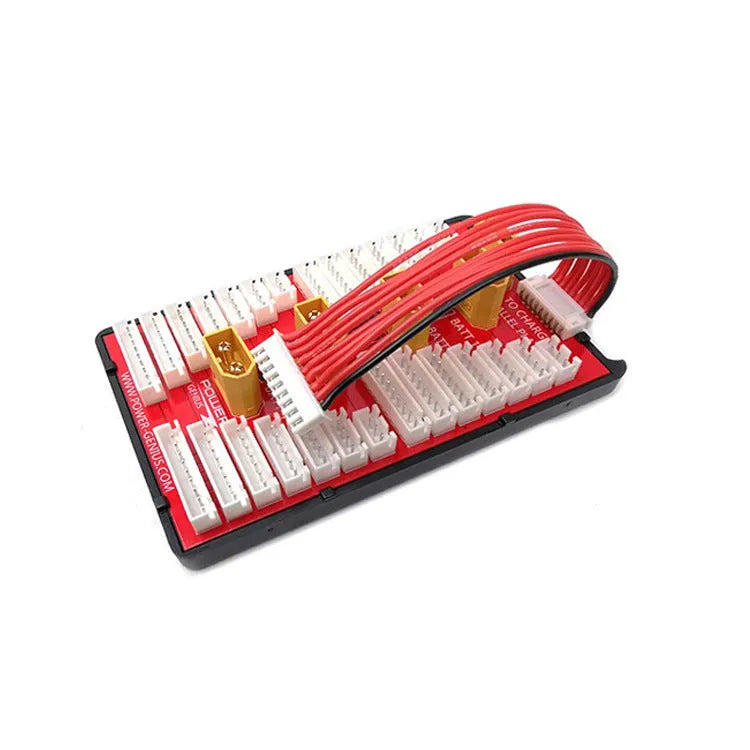

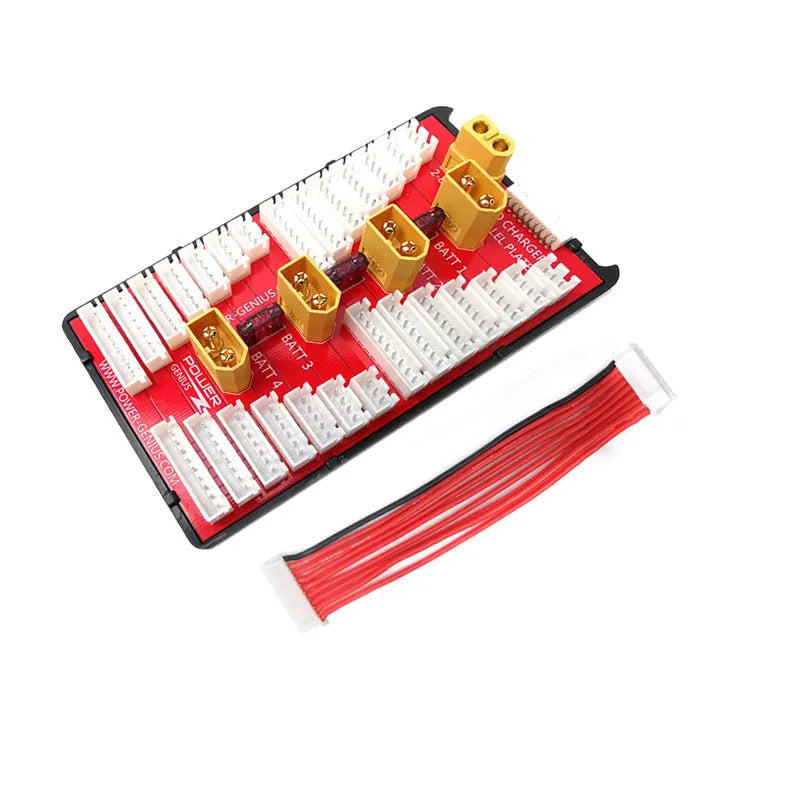

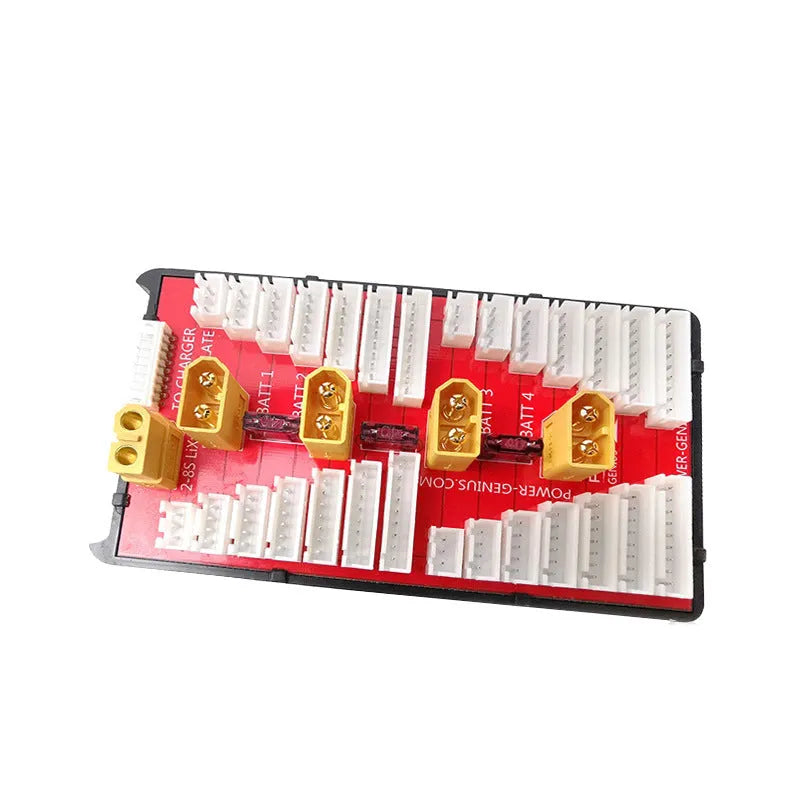

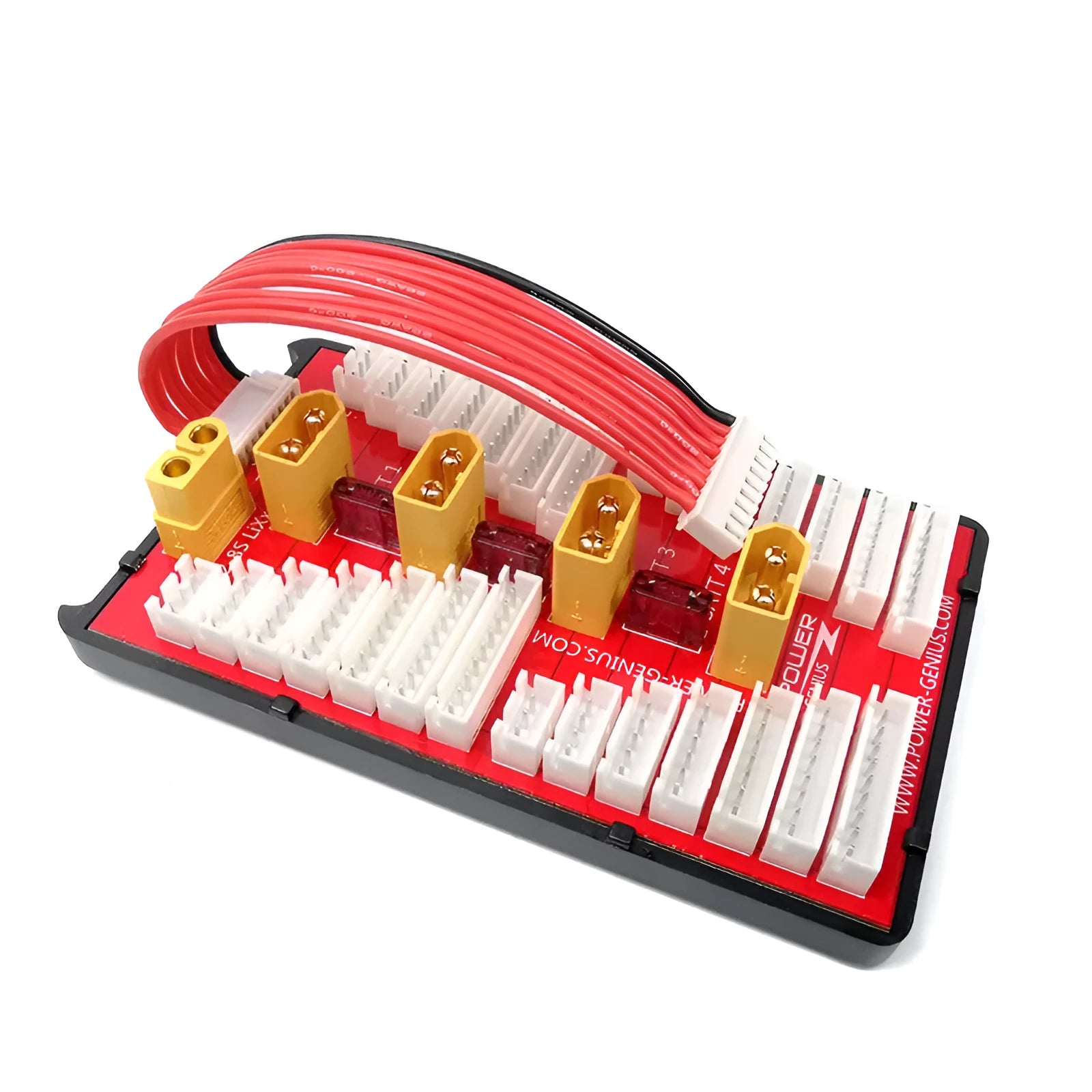

This parallel charging expansion adapter is a practical tool for enthusiasts of radio-controlled cars, drones, and other model aircraft. Its primary function is to streamline the charging process for multiple lithium polymer (LiPo) or lithium-ion battery packs. By allowing up to four batteries of the same voltage and cell count to be charged in a single session, it eliminates the need for manual battery swapping and repeated connection cycles with your balance charger. This board is specifically engineered to connect 2S to 8S battery packs in parallel, which superimposes their capacity while maintaining the original cell count, enabling faster overall charging times. It incorporates several key safety and performance features, such as integrated fuses and robust electrical components, to support reliable operation.
Features and Construction
The board is built with a focus on handling the electrical demands of parallel charging while incorporating safeguards. The design prioritises a secure connection and current management to support efficient charging cycles for your RC equipment.
Material and Build
The core of the adapter is a printed circuit board (PCB) fabricated with thickened copper foil. This construction is specified to support a sustained charging current of up to 35 amps, which is necessary when multiple high-capacity batteries are connected. All electrical connectors on the board are gold-plated. This plating offers superior conductivity compared to standard finishes and provides increased resistance to oxidation and corrosion over time, ensuring a more consistent and reliable connection point for your battery leads and balance cables.
Size and Practical Fit

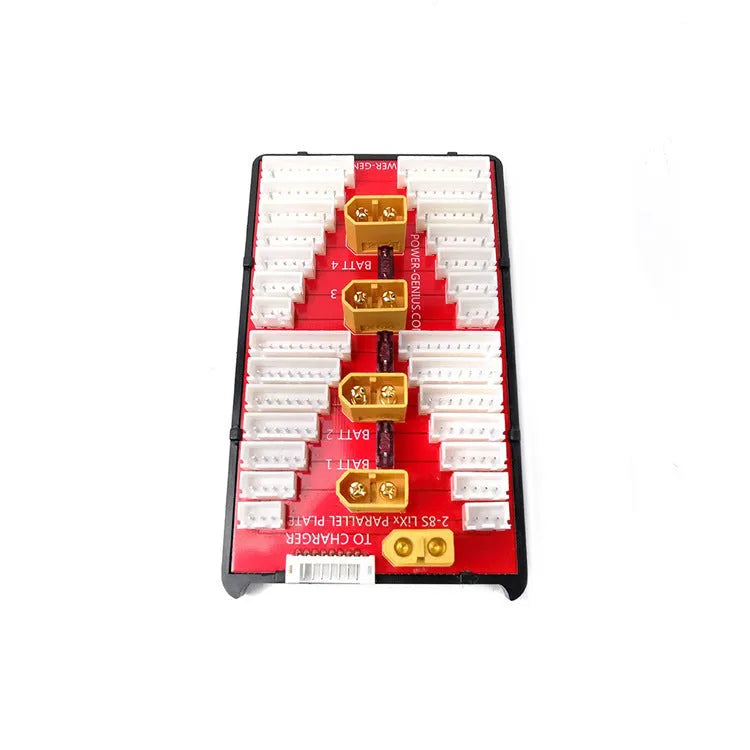

While exact physical dimensions are not provided, the board is designed as a compact station to manage the connections for four battery sets. Its layout typically includes clearly labelled ports for the main power leads (T plugs) and corresponding balance ports for each channel. The output lines from the board's balance ports are made from 18AWG multi-strand silicone wire. This type of wire is notably flexible, resistant to cracking in a workshop environment, and capable of carrying the balance currents required during the charging process.
Uses and Placement
This adapter transforms a single-output balance charger into a multi-bank charging station. It is intended for use in scenarios where multiple batteries need to be prepared, such as before a day of flying drones or an RC car racing event.
Event or Professional Use
For pilots or drivers who use several battery packs in succession, this board significantly cuts down on downtime between sessions. Instead of charging packs individually, which can take hours in total, connecting four compatible packs in parallel allows them to be charged in one go. This is particularly valuable when time between heats or flights is limited. The board's ability to safely handle a 35A total current means even batteries with lower individual charge rates (C-rates) can benefit from the aggregated current, effectively shortening the charge cycle for the entire set.
Everyday Home Use
For the hobbyist at home, the board adds convenience to battery maintenance. After a day of use, all discharged packs of the same specification can be connected and charged overnight. The parallel connection also has a balancing benefit: when multiple cells of the same nominal voltage are connected, their voltages average out. This can reduce the amount of balancing work the charger needs to perform on each individual cell, potentially leading to a more efficient charge cycle and helping to maintain pack health over time.
Benefits and Buying Value
The value of this product lies in the time it saves and the organised, safer charging workflow it enables compared to managing multiple individual connections.
Reuse and Low Maintenance
The board is a durable tool designed for repeated use. The robust PCB, quality wiring, and corrosion-resistant connectors contribute to a long service life with minimal maintenance. The included set of silicone safety caps for the T plugs are a simple but critical accessory; storing them on unused plugs prevents dust accumulation and, more importantly, eliminates the risk of metal objects falling across the terminals and causing a dangerous short circuit.
Why Choose This Product
This parallel charging board offers a clear functional advantage for anyone regularly charging more than one lithium battery pack. Its built-in safety features, like the 40-amp fuses placed between each battery group, provide protection. These fuses are designed to blow if an excessive voltage difference exists between connected packs, preventing potential damage to the batteries or the board itself. By consolidating the charging process, it reduces clutter at your charging station and minimises wear on your charger's main output connector from constant plugging and unplugging.
