Metal V-head pipe bracket with ball bearing options for steel pipe support systems

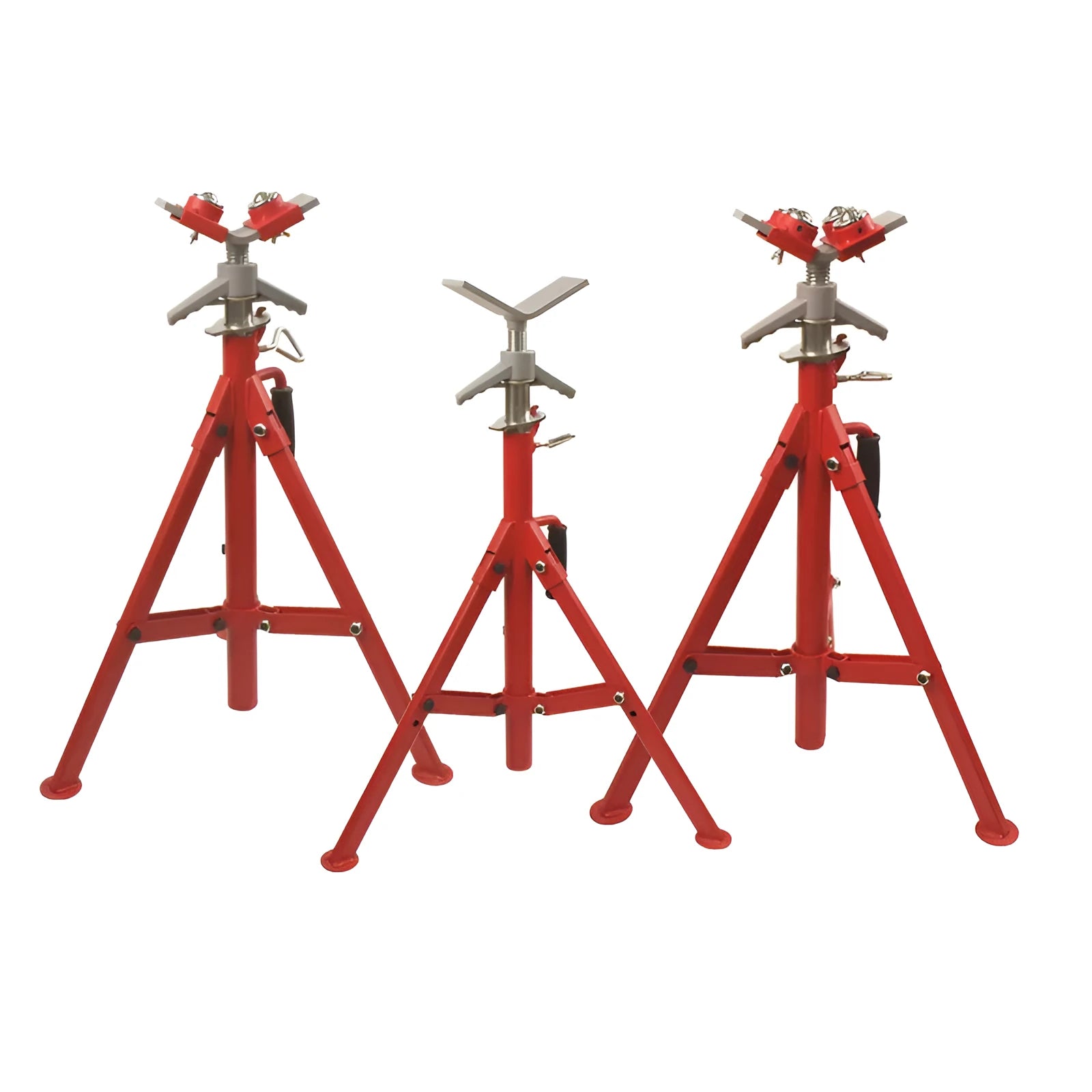

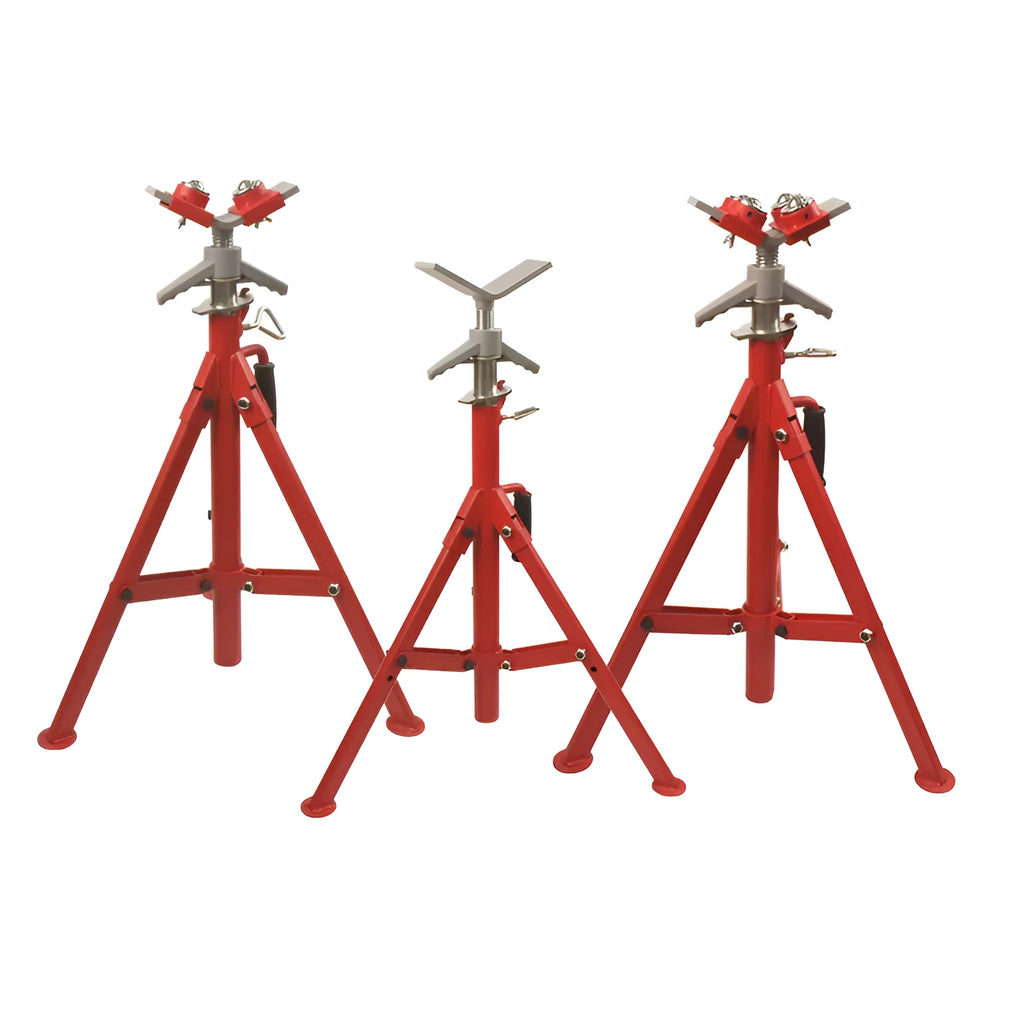

This metal pipe bracket is designed to provide secure mounting and support for steel pipes in various installations. Its core feature is the V-shaped head which cradles the pipe, coupled with the availability of different height profiles and ball bearing configurations. These options allow installers to select a bracket that matches specific clearance requirements and desired levels of alignment assistance or friction management within the support assembly. The product is supplied as a single, ready-to-install unit, focused on the practical task of pipe support.
Features and Construction
The bracket is offered in a range of six distinct model variations, allowing precise selection for the job at hand. The primary differentiators are the bracket height and the inclusion of ball bearings.
Material and Build
The bracket is fabricated from metal, which provides the necessary rigidity and load-bearing capacity for supporting steel pipework. The construction is centred around the V-head design, which forms the main point of contact with the pipe. This shape helps to locate and secure the pipe within the bracket. The metal material is the sole stated construction detail, indicating its role as a structural component within a support system.
Size and Practical Fit

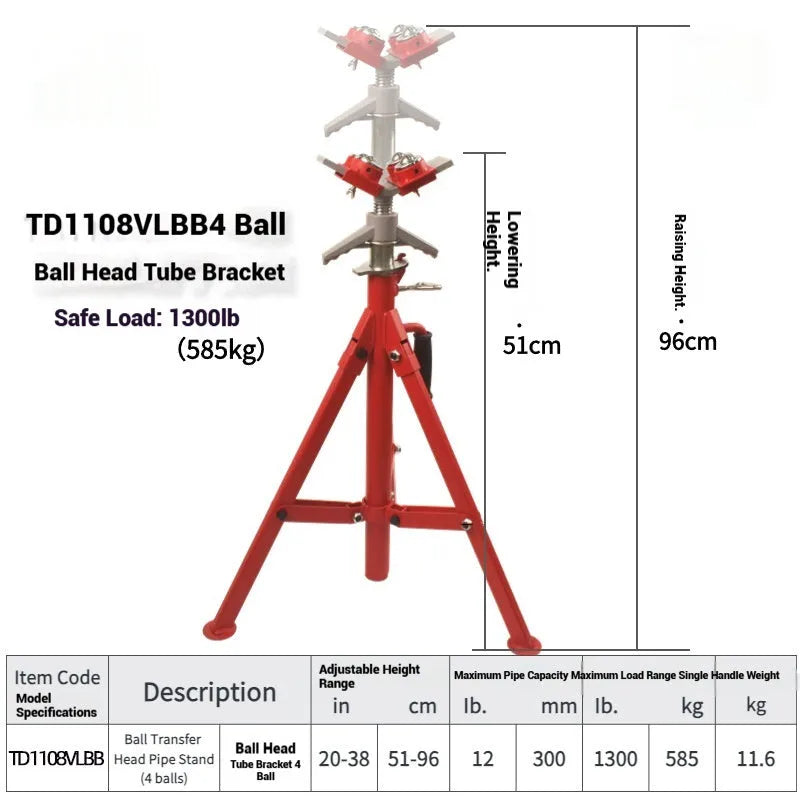

The product line addresses fit through two key variables: height and ball bearing count. The 'high' variants (TD108VH, TD1108VHB, TD1108VHBB) and 'short' variants (TD1108VL, TD1108VLB, TD1108VLBB) cater to different vertical space or clearance requirements. Furthermore, the suffix codes indicate the ball bearing configuration: models ending in 'B' have a double ball setup, those ending in 'BB' feature four balls, and models without a 'B' suffix are the standard single-ball or non-ball variants. This coding system helps identify the right product for the required mechanical function.
Uses and Placement
This bracket is intended for use in scenarios where steel pipes need to be held securely in a fixed position or guided with minimal resistance. The scope of application is explicitly stated as 'supporting pipe'.
Event or Professional Use
In professional or industrial settings, such as mechanical services, plumbing, or infrastructure projects, these brackets can form part of a larger pipe support system. The availability of specific model codes allows for precise specification in technical drawings or bills of materials. The ball bearing variants may be selected for applications where some rotational movement or alignment flexibility is beneficial, or where reducing friction at the support point is a consideration.
Everyday Home Use
While likely geared towards trade use, similar principles could apply to substantial DIY projects involving steel pipe, such as for structural handrails, heavy-duty shelving frames, or workshop utility lines. The V-head design offers a straightforward mounting point, and choosing the correct height variant is crucial for ensuring the pipe is held at the intended level relative to its mounting surface.
Benefits and Buying Value
The value of this product lies in its specialised design for a single, clear purpose and the options provided to tailor it to specific needs.
Reuse and Low Maintenance
As a metal component, the bracket is inherently durable and can be reused if disassembled from an initial installation. Its function is mechanical and does not involve consumable parts, though the ball bearings in some models represent moving parts that may require inspection over time. Maintenance would typically involve ensuring the bracket remains securely fastened and free from excessive corrosion in its operating environment.
Why Choose This Product
This bracket is a focused solution for steel pipe support. The decision factors are practical: the required mounting height (high or short) and whether the application would benefit from the alignment or reduced friction offered by the double or four-ball bearing options. The clear model coding (TD108VH, TD1108VL, etc.) facilitates accurate ordering and avoids confusion, ensuring the delivered product matches the specification.
