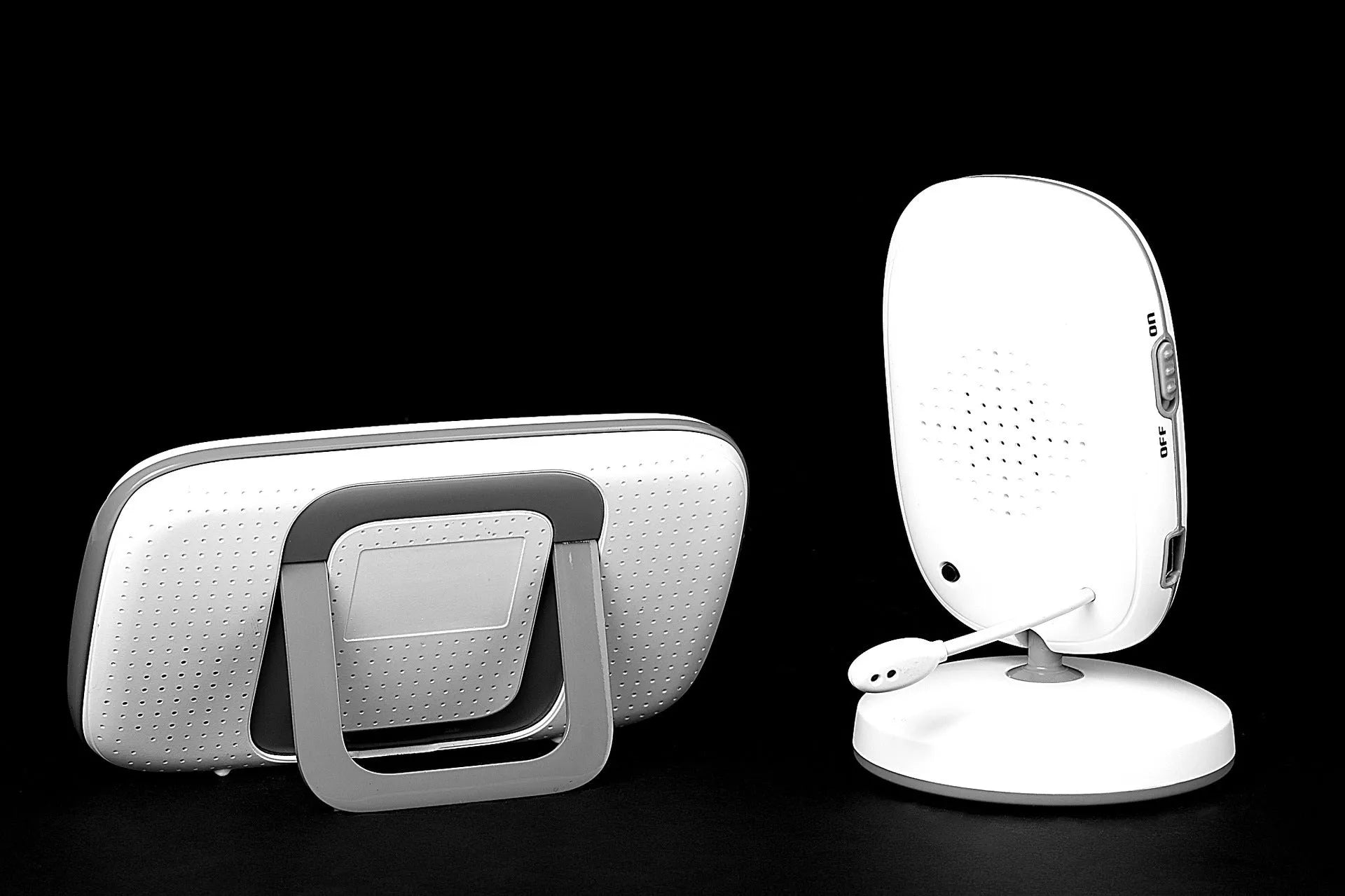

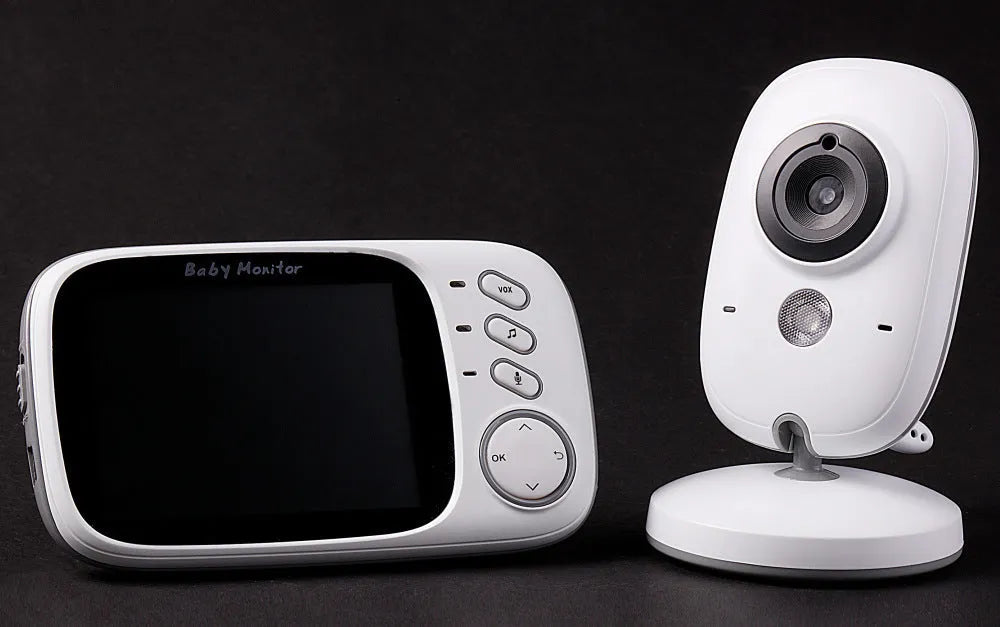

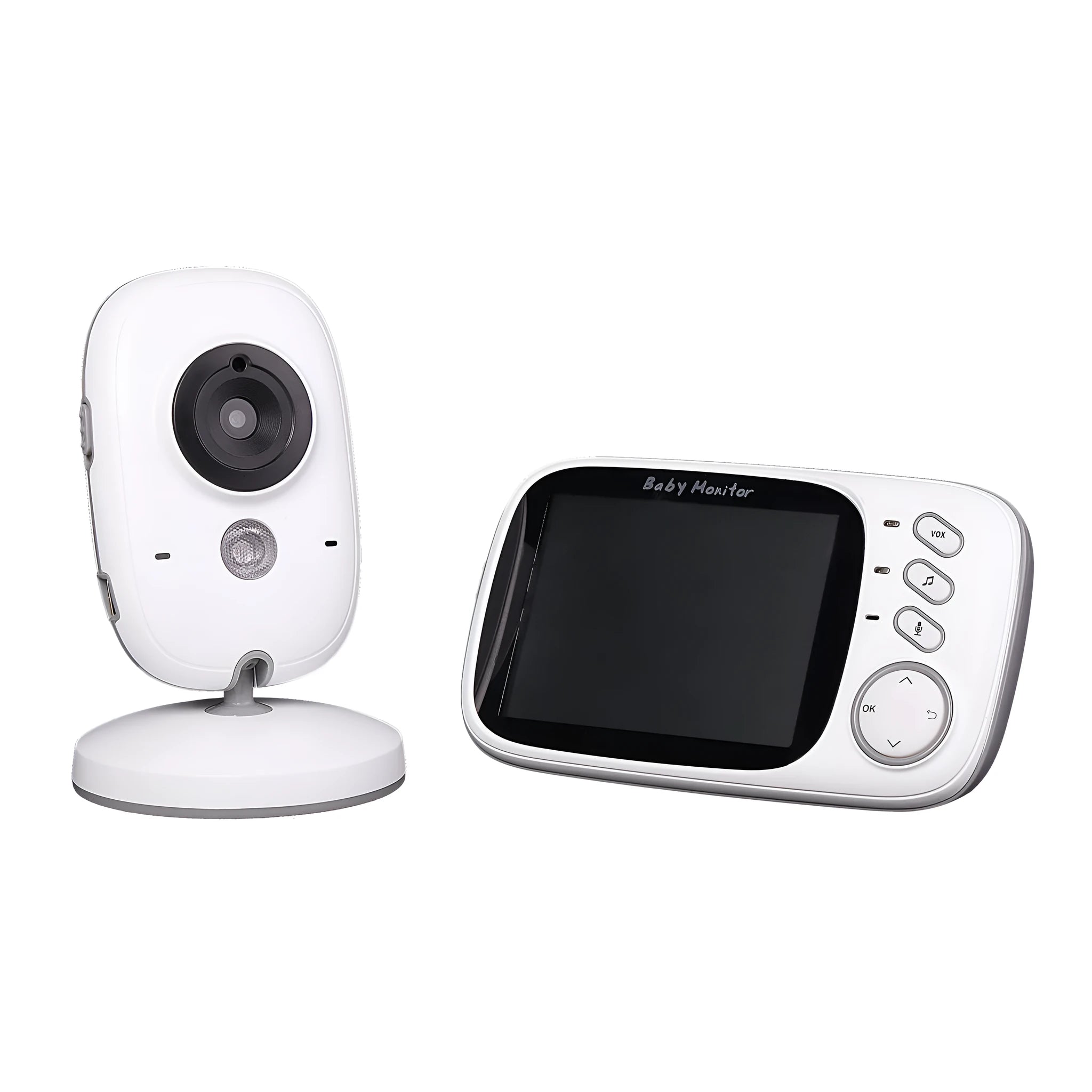

VB603 Digital Baby Monitor with 3.2-Inch Colour Screen, Night Vision, and Two-Way Intercom

Keeping a watchful eye on your baby while they sleep or play in another room is made simpler with the VB603 Intelligent Digital Baby Monitor. This wireless system provides both visual and audio monitoring through a portable parent unit with a 3.2-inch colour LCD screen. It is designed for reliable in-home use with a digital signal that resists interference, a camera featuring automatic infrared night vision, and practical extras like a built-in temperature sensor and lullabies. This guide details its specifications, setup, and practical applications for new parents.

Features and Construction

The VB603 monitor is built around core components that deliver its monitoring functions: a camera unit for the nursery and a handheld parent unit with a screen. Its construction focuses on providing clear, real-time information using digital wireless technology.

Material and Build

The monitor's electronic components are housed within plastic casings, designed to be lightweight and portable. The parent unit is powered by a rechargeable 750 mAh lithium polymer battery, which supports up to 5 hours of use in voice-activated mode. Both the camera and parent unit connect to mains power via the included 5V/500mA DC adapters for continuous operation. The system uses a CMOS image sensor in the camera to capture video.

Size and Practical Fit

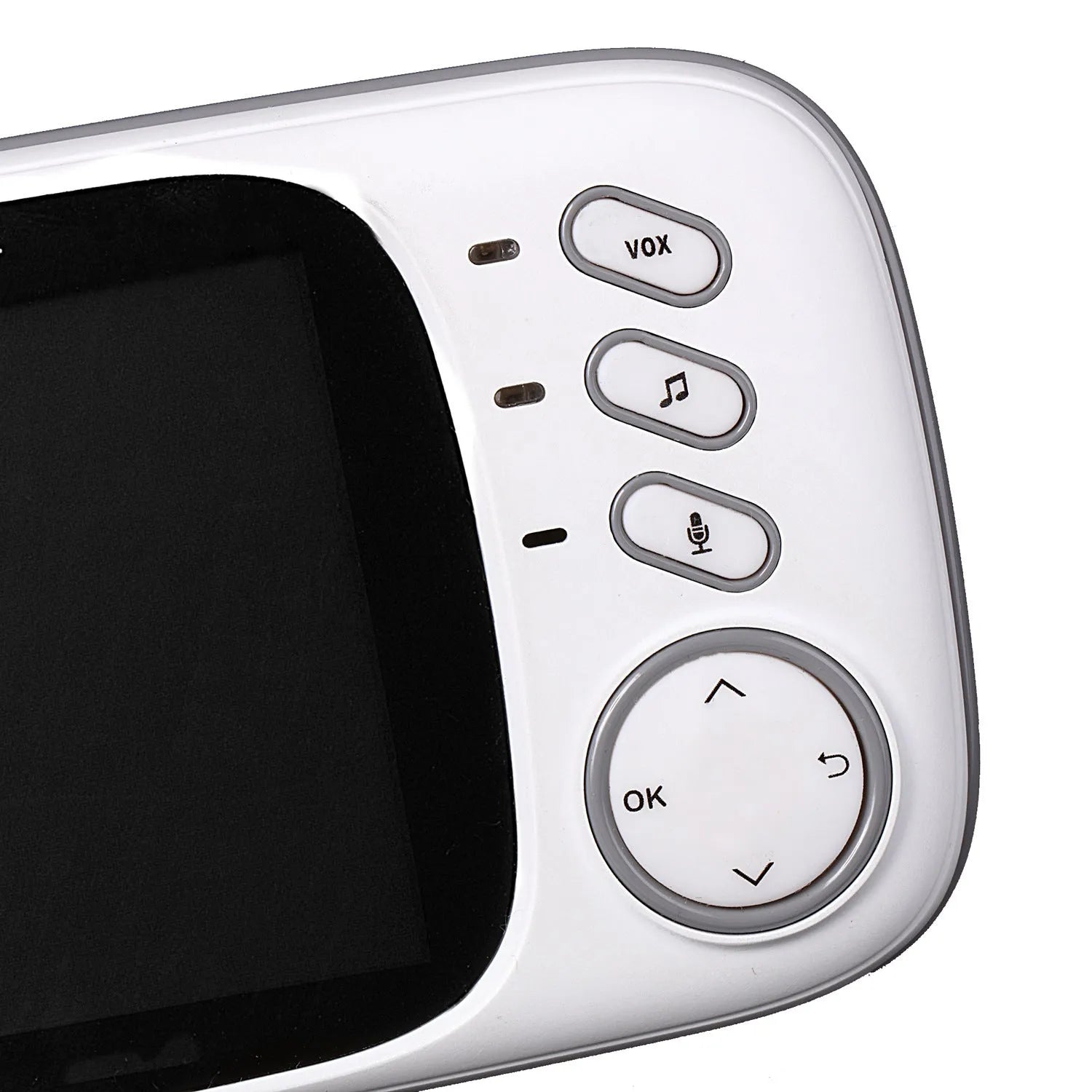

The parent unit's primary interface is its 3.2-inch LCD screen, which displays video at a resolution of 220 by 176 pixels. The camera has a 55-degree field of view, allowing it to cover a reasonable area of a crib or nursery room. Its infrared night vision feature is effective in total darkness up to a distance of 5 metres (15 feet), ensuring visibility even with the lights off. The compact size of both units makes them easy to position on a shelf or bedside table.

Uses and Placement

This monitor is intended for domestic use, primarily for observing infants and young children in a separate room. Its feature set supports both day and night monitoring scenarios.

Event or Professional Use

While designed for home use, the monitor's robust digital transmission can be useful in other settings where temporary, private monitoring is needed. Its long outdoor range of up to 260 metres (850 feet) in clear line-of-sight conditions could support use in a garden, on a patio, or during travel in a hotel, provided the operating temperature range of -10°C to +50°C is observed. The two-way intercom allows for clear communication over this distance.

Everyday Home Use

For daily nursery monitoring, place the camera in the baby's room, ensuring it has a clear view of the cot. The temperature monitoring function provides a reading of the room's ambient conditions, which can be helpful for ensuring a comfortable sleep environment. The eight lullabies stored in the camera can be activated remotely from the parent unit to help soothe the child. The system operates on the 2.4 GHz ISM band (2400-2483.5 MHz) using GFSK modulation for a stable, private connection.

Benefits and Buying Value

The VB603 offers a consolidated set of monitoring tools in one system, aiming to reduce the need for multiple separate devices. Its value lies in the integration of sight, sound, and supplemental features.

Reuse and Low Maintenance

The monitor is designed for repeated daily use. The lithium polymer battery is rechargeable via the supplied adapter. Maintenance is minimal, primarily involving keeping the camera lens clean and ensuring the units are used within their specified temperature and range limits. The digital signal with AFH (Adaptive Frequency Hopping) and TDMA (Time Division Multiple Access) spread spectrum technology helps maintain a clear, uninterrupted connection free from interference from other household wireless devices.

Why Choose This Product

This baby monitor may suit parents looking for a system that combines a visual feed with audio and extra features without being overly complex. The concrete differentiators are its specific 3.2-inch colour screen, the 5-metre night vision range, the inclusion of a temperature sensor and lullabies, and the claimed outdoor transmission distance of 260 metres. It provides a factual set of tools for monitoring a child's safety and comfort from another part of the home.
