CONTEC08A Veterinary Digital Blood Pressure Monitor with Oscillometric Measurement and Three Cuff Sizes

The CONTEC08A-VET represents a specialised veterinary instrument designed specifically for non-invasive blood pressure monitoring in animals. This electronic sphygmomanometer employs oscillometric measurement technology with fully automatic operation, making it accessible for both veterinary professionals and pet owners conducting routine health checks. With its ability to accommodate different animal sizes through three distinct cuff options and store comprehensive measurement data, this device serves as a practical tool for monitoring cardiovascular health in clinical, hospital, farm, and home settings. The high-definition colour display and intuitive data review interfaces provide clear access to measurement trends, supporting informed decision-making about animal wellbeing.

Features and Construction

The CONTEC08A-VET incorporates several functional elements that enhance its utility in veterinary blood pressure monitoring. From its measurement methodology to data management capabilities, each component addresses specific requirements of animal health assessment in varied environments.

Measurement Technology and Operation

This veterinary blood pressure monitor utilises oscillometric multistep deflation methodology for fully automatic measurement. The one-touch operation simplifies the process while maintaining good repeatability, reducing operator-dependent variables that can affect accuracy. When measurement errors occur, the device provides prompt error messages to guide troubleshooting. The measurement range extends from 0mmHg to 290mmHg (0kPa to 38.67kPa) with a resolution of 1mmHg, while static pressure accuracy remains within ±3mmHg (±0.4kPa). Automatic inflation via force pump and controlled deflation ensure consistent measurement conditions across different applications.

Display and Data Management

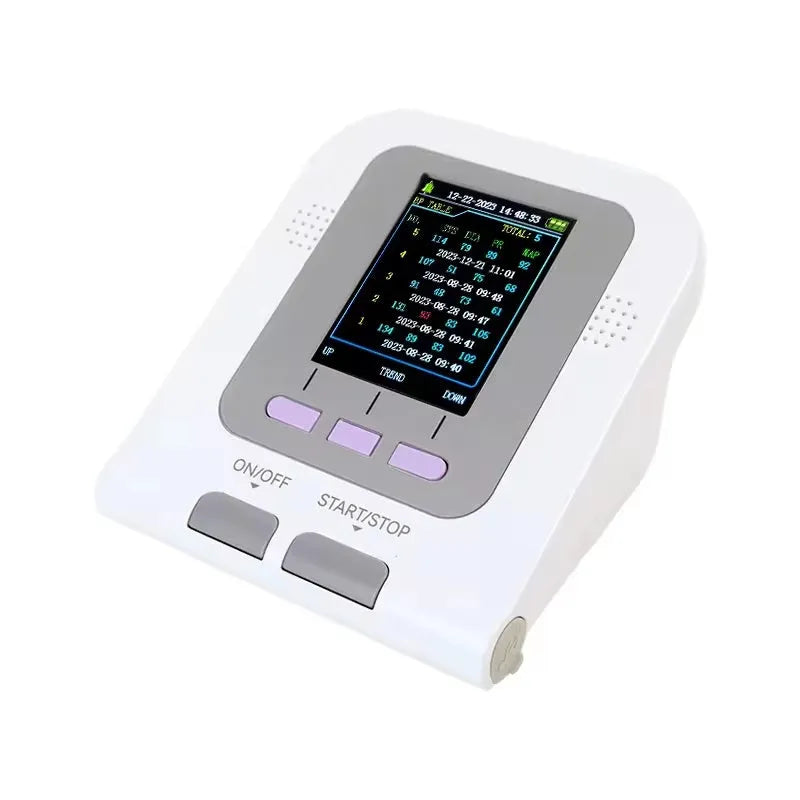

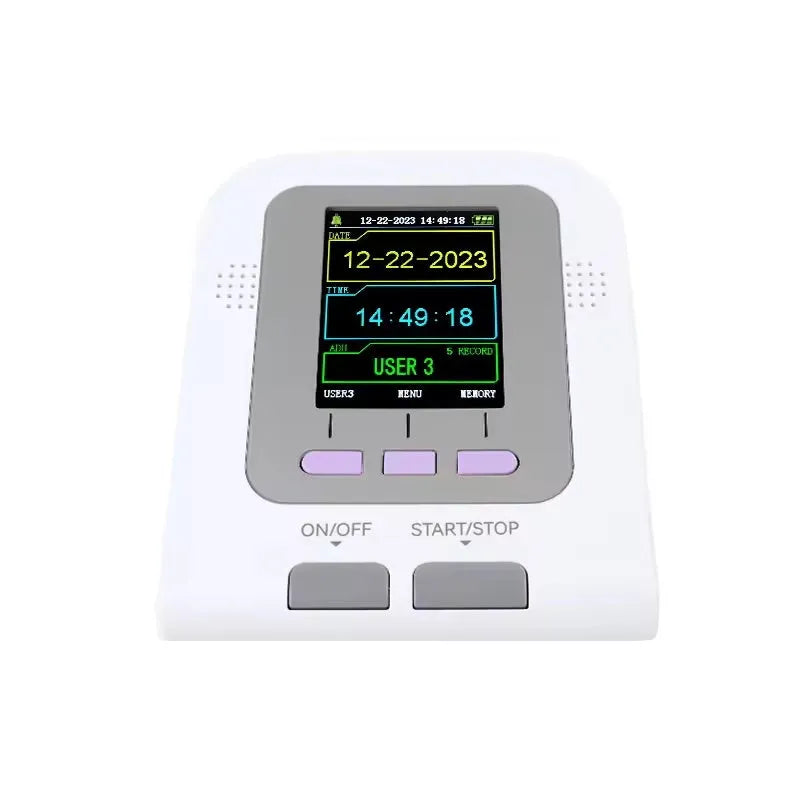

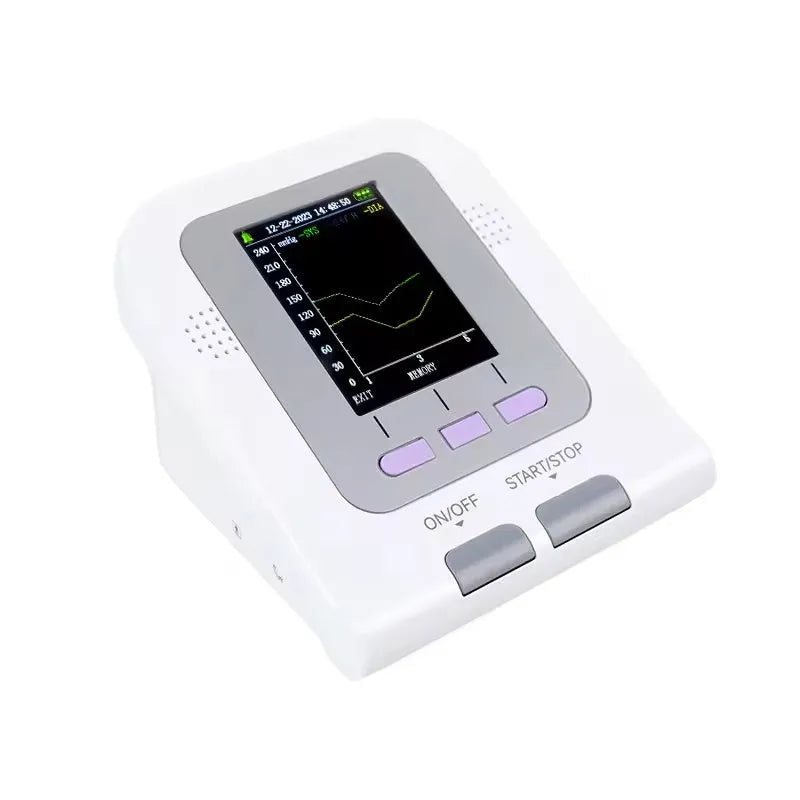

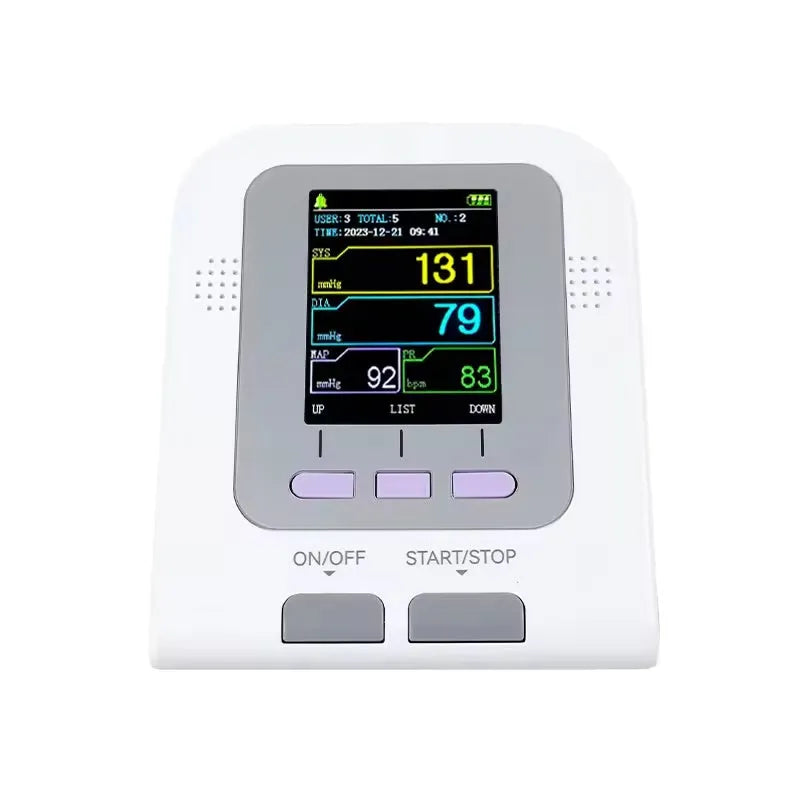

A 2.8-inch high-definition colour LCD screen offers strong visibility of measurement results, which can be displayed in either mmHg or kPa units according to user preference. The device stores up to 100 groups of measurement data complete with date and time stamps, accessible through three review interfaces: data list for tabular examination, trend chart for graphical analysis, and big font mode for clear presentation. This data storage capability supports longitudinal monitoring of animal blood pressure, particularly valuable in clinical settings where tracking changes over time informs treatment decisions.

Cuff System and Animal Adaptation

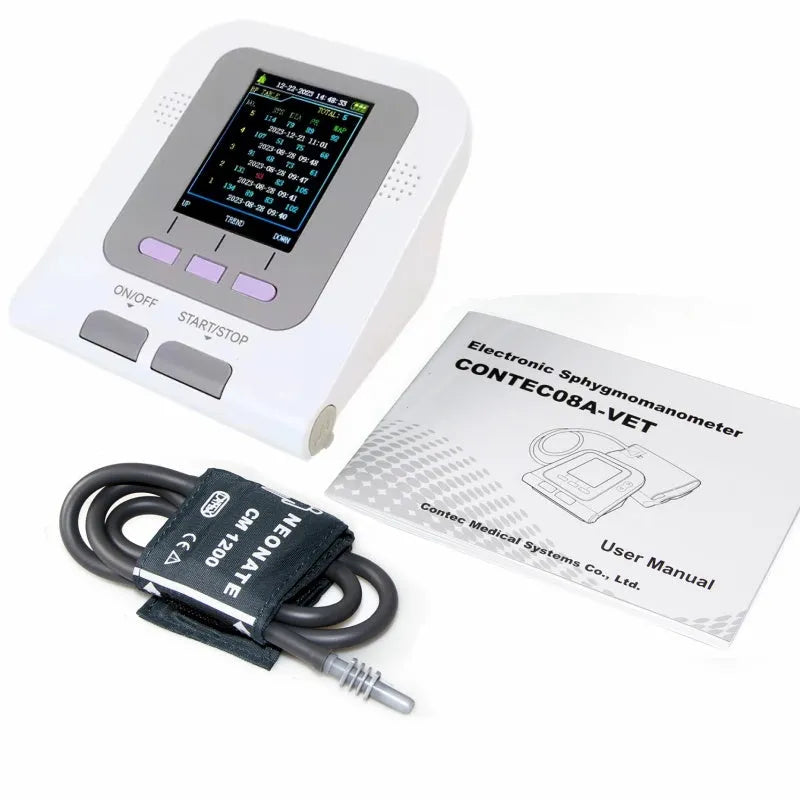

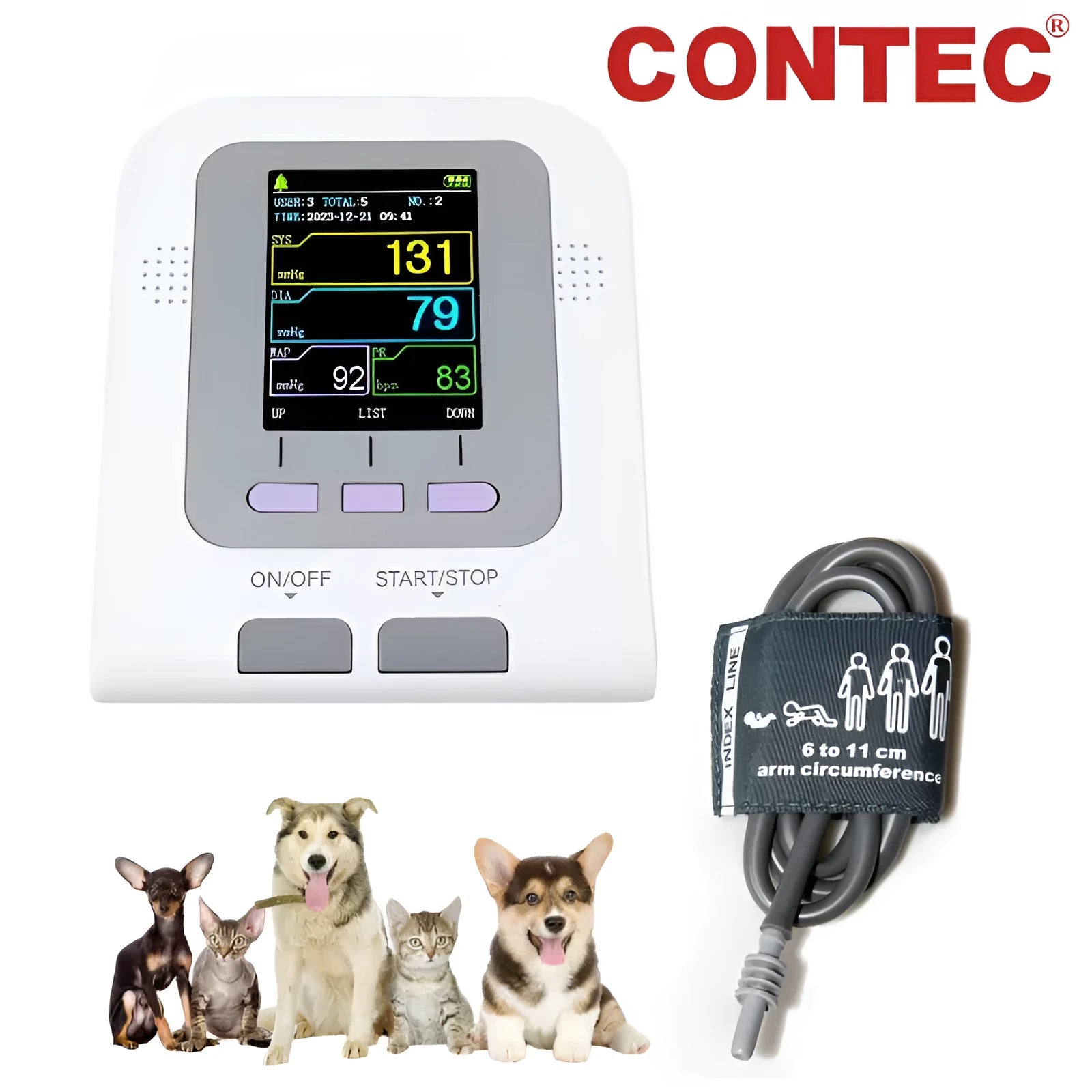

Three cuff sizes—large, medium, and small—allow appropriate selection based on different animal body types. This sizing flexibility accommodates everything from small companion animals to larger veterinary patients, ensuring proper fit for accurate oscillometric measurement. The cuff system integrates seamlessly with the device's automatic measurement process, with user selection of the corresponding cuff mode matching the physical cuff attached. This adaptability makes the monitor suitable for diverse veterinary applications across species and size variations commonly encountered in practice.

Uses and Placement

The CONTEC08A-VET finds application in multiple environments where animal blood pressure monitoring contributes to health assessment and management. Its operational specifications and design features support both professional veterinary use and responsible home monitoring scenarios.

Professional Veterinary Applications

In animal hospitals, veterinary clinics, and farm settings, this digital sphygmomanometer serves as a diagnostic and monitoring tool for routine testing and patient assessment. The physiological alarm function with user-settable high and low limits provides immediate alerts when blood pressure readings exceed established parameters, supporting timely clinical intervention. The device's ClassⅡ BF applied part safety rating ensures appropriate electrical safety standards for veterinary medical equipment. With operational environment specifications of 5˚C to 40˚C temperature and 15% to 80% relative humidity, it functions reliably in typical clinical conditions.

Home and Routine Monitoring

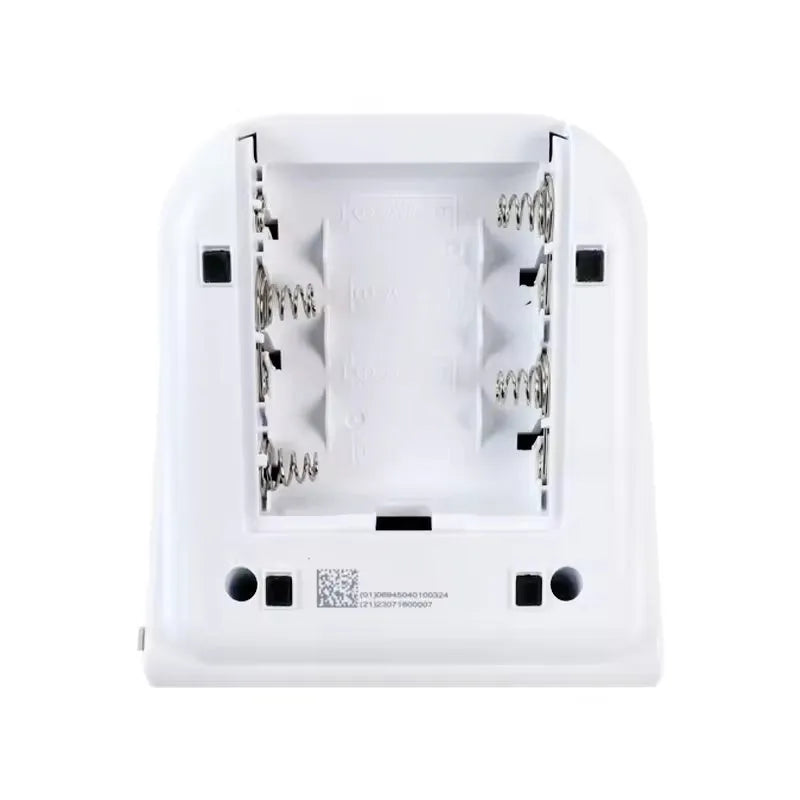

For family pets requiring regular blood pressure monitoring, the CONTEC08A-VET offers a practical solution with straightforward operation. The automatic measurement process with visual and audial prompts guides users through proper technique, while the clear display presents results in easily interpretable formats. The device's portability (300g without batteries) and battery operation (four AA batteries with optional 5V/6V adapter) facilitate use in home environments. The automatic power-off function conserves battery life during periods of non-use, and the short-time power storage function maintains clock time during battery replacement.

Benefits and Buying Value

The CONTEC08A-VET provides several practical advantages for those requiring reliable animal blood pressure measurement capabilities. These benefits stem directly from its technical specifications and design features rather than invented claims about performance or durability.

Practical Advantages in Use

The monitor's combination of automated measurement, multiple cuff sizing options, and comprehensive data storage creates a cohesive system for animal blood pressure assessment. The ability to review historical measurements through different interfaces supports clinical decision-making and treatment monitoring. Low power alerts provide advance notice for battery replacement, while the device's compact dimensions (130mm × 110mm × 80mm) facilitate storage and transport between different monitoring locations. These interconnected features address practical considerations in both professional and home monitoring scenarios.

Considerations for Selection

When evaluating this veterinary blood pressure monitor, the specific measurement methodology (oscillometric with multistep deflation), data storage capacity (100 groups), and cuff sizing options (large, medium, small) represent its defining characteristics. The device's operational environment specifications (temperature, humidity, atmospheric pressure ranges) should align with intended usage settings. For those requiring regular monitoring of animal blood pressure with trend analysis capabilities, the data review interfaces and storage function provide distinct utility. The inclusion of both battery and adapter power options offers flexibility in different usage environments without access to mains electricity.
