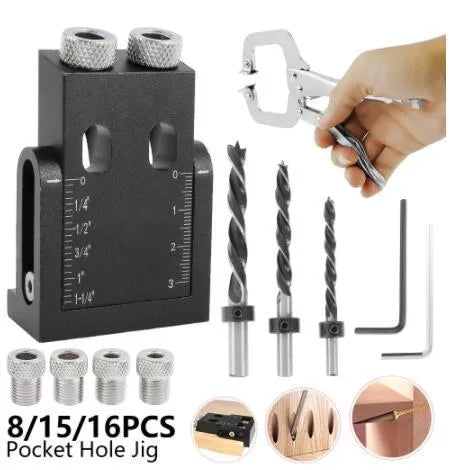

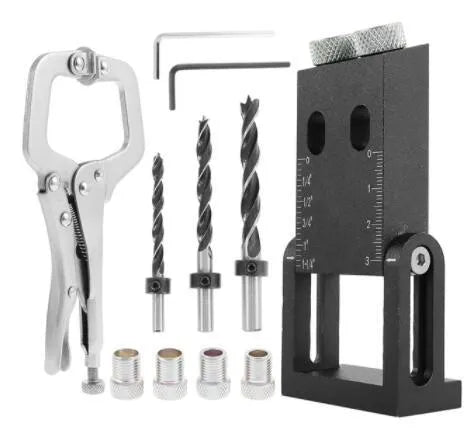

Aluminium Alloy Woodworking Perforation Locator Tool for Cabinet and Furniture Joinery

This specialised woodworking tool is designed to solve a common challenge in cabinet making and furniture assembly: creating accurately aligned and consistently angled holes for hardware installation. The aluminium alloy perforation locator acts as a physical guide, ensuring your drill bit enters the wood at the correct point and the precise 15-degree angle required for many hinge and connector systems. By providing a stable template, it helps woodworkers, both professional and DIY enthusiasts, achieve cleaner results with reduced measurement errors and less risk of misaligned fittings that can compromise the final build. Its construction from aluminium alloy offers a practical balance, being rigid enough to maintain its shape under pressure during drilling yet lighter than solid steel alternatives for comfortable handling during extended use.

Features and Construction

The tool's functionality is built around a set of key, measurable specifications that define its application and use case. It is not a generic drill guide but a purpose-built aid for specific woodworking connection tasks.

Material and Build

The core component of this locator is fabricated from aluminium alloy. This material choice is significant for a hand-held workshop tool. Aluminium alloy provides sufficient structural integrity to act as a reliable guide against the force of a drill, preventing flex or deformation that could affect hole accuracy. Simultaneously, its relatively light weight compared to denser metals makes the tool easier to manoeuvre and position precisely on a workpiece, reducing user fatigue during repetitive drilling tasks common in batch furniture production or kitchen cabinet installation.

Size and Practical Fit

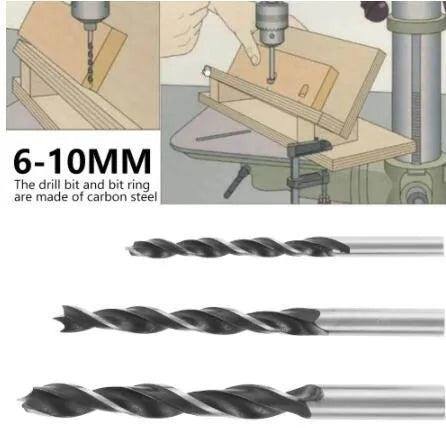

The tool's capabilities are defined by its compatible components rather than a single overall dimension. It is engineered to work with drill bits in the 6mm to 10mm size range, covering common diameters used for wood screws and connector dowels. Specifically, it includes sleeves sized for 6mm, 8mm, and 10mm bits, allowing the user to select the correct guide for their chosen fastener. The 15-degree fixed angle of the sleeve is a critical specification, targeting the standard angle required for mounting many European-style concealed cabinet hinges and other angled joinery, making it a specialist tool for cabinet door fitting and similar applications.

Uses and Placement

This tool finds its primary application in scenarios where repeated, precise angled drilling is necessary. Its value becomes most apparent in structured woodworking projects rather than general-purpose drilling.

Event or Professional Use

For professional cabinetmakers, kitchen fitters, or furniture workshop technicians, this locator acts as a time-saving and accuracy-enhancing jig. When installing multiple cabinet doors in a kitchen or a run of built-in wardrobes, consistency is paramount. Using this guide ensures every hinge mounting hole is drilled at the identical 15-degree angle and depth, leading to doors that hang uniformly and close correctly. It reduces the need for complex measuring and marking for each hole, streamlining the installation process and helping maintain a high standard of finish across a large job, which is crucial for customer satisfaction and professional reputation.

Everyday Home Use

For the serious DIYer or hobbyist woodworker undertaking projects like building kitchen cabinets, fitting wardrobe doors, or constructing custom shelving units with angled supports, this tool brings a level of precision often hard to achieve with freehand drilling. It helps bridge the gap between amateur and professional results by providing a physical constraint that corrects small hand movements. Whether retrofitting new hinges on existing cabinets or building a piece of furniture from scratch, the tool offers confidence that critical joinery holes will be positioned correctly, reducing the likelihood of costly mistakes that can ruin a workpiece or leave visible imperfections.

Benefits and Buying Value

The value of this woodworking locator lies in its focused problem-solving and the practical advantages derived from its specific material and design.

Reuse and Low Maintenance

As a metal tool, it is designed for repeated use across multiple projects. The aluminium alloy construction is resistant to corrosion under normal workshop conditions and is durable enough to withstand the friction and pressure of guiding drill bits. Maintenance is straightforward, primarily involving clearing wood dust and metal shavings from the guide sleeves to ensure smooth bit insertion. Its simplicity means there are no complex parts to wear out or replace, offering long-term utility as part of a woodworker's toolkit for any task requiring 15-degree angled holes with 6mm, 8mm, or 10mm drill bits.

Why Choose This Product

This tool is chosen for its specific, source-supported attributes: the aluminium alloy build for a light yet firm guide, the clear compatibility with 6mm, 8mm, and 10mm drill bits, and the fixed 15-degree angle targeting common cabinet hinge installation. It provides a concrete solution for a defined task—creating accurate angled pilot holes—without claiming to be a universal tool. For anyone regularly involved in furniture assembly or cabinet fitting where such angles are standard, it represents a focused investment in achieving reliable, repeatable results more efficiently than attempting the same work with manual measurement and marking techniques alone.
