X99 LGA2011-3 Motherboard with Quad-Channel DDR4 Memory Support and High-Speed Connectivity

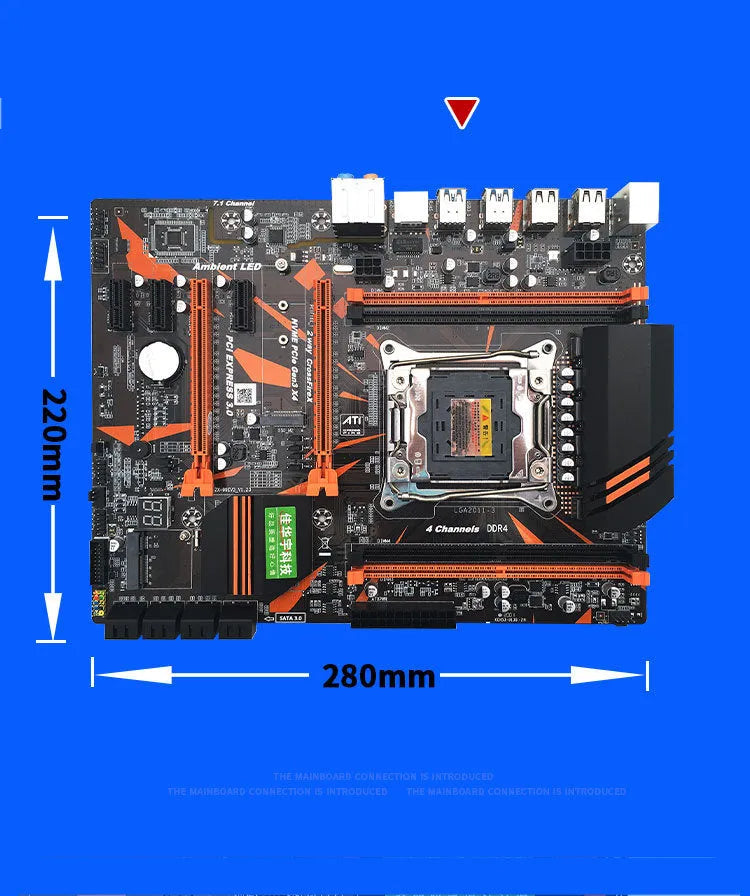

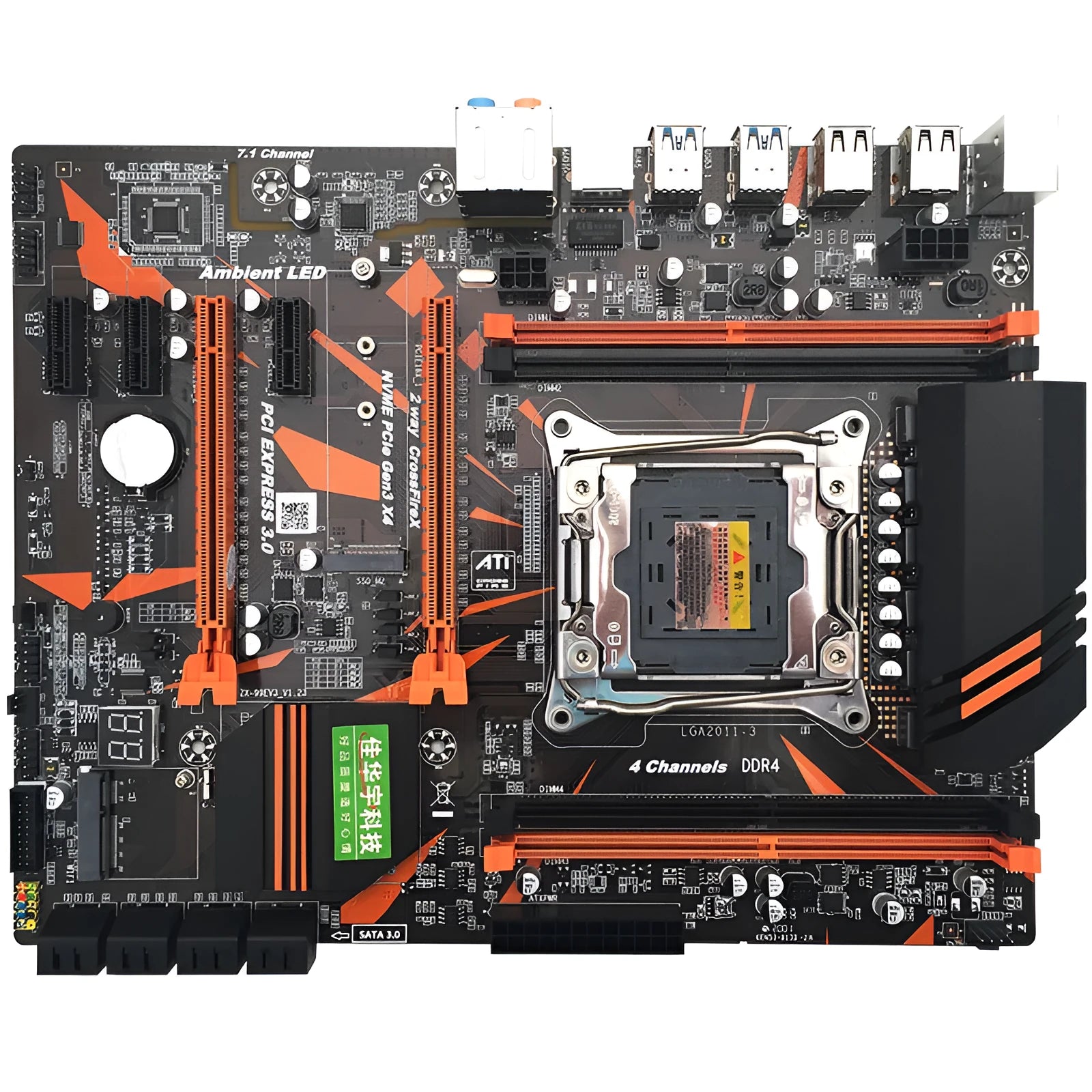

This ATX form factor motherboard builds on the Intel X99 chipset platform to deliver workstation-level performance for demanding computing applications. Designed for Intel's LGA2011-3 socket processors, it accommodates both high-end desktop Core i7 processors from the 5xxx and 6xxx series as well as Xeon E5 v3 server-grade CPUs. The board's architecture emphasizes memory bandwidth through its quad-channel DDR4 implementation while providing extensive expansion options through multiple PCI-E slots and storage interfaces. With integrated Gigabit networking and 7.1 channel audio, it serves as a complete foundation for gaming systems, content creation workstations, or computational research builds requiring substantial memory capacity and processing power.

Processor and Memory Specifications

The motherboard's core specifications focus on supporting high-performance computing components with specific compatibility requirements that users should understand before building their systems.

CPU Compatibility Details

This motherboard uses the LGA2011-3 socket design compatible with Intel processors featuring this physical interface. It specifically supports Core i7 processors from the 5820K and 5960K series as well as other 5xxx and 6xxx series chips. The platform also accommodates Xeon E5 v3 series server processors, though users should note that combining consumer Core i7 CPUs with server-grade REG ECC memory modules may present compatibility issues. The socket's design requires careful installation to avoid bent pins, with the board including standard mounting hardware for compatible CPU coolers.

Memory Architecture and Configuration

Four DDR4 DIMM slots arranged in a quad-channel configuration support memory speeds up to 2400MHz or 2333MHz depending on module specifications. Each slot accepts up to 32GB modules for a theoretical maximum of 128GB total system memory. The board supports both standard desktop DDR4 memory and server-grade REG ECC modules, though users must ensure CPU compatibility when using ECC memory. Memory installation follows standard colour-coded slot sequencing for optimal quad-channel performance, with the board automatically detecting module specifications during POST.

Expansion and Storage Capabilities

The motherboard provides substantial expansion potential through multiple interface standards, allowing users to configure systems for specific workloads and performance requirements.

PCI-E Expansion Slots

Two PCI-E x16 slots operating at full bandwidth accommodate high-performance graphics cards for gaming, rendering, or GPU computing applications. These slots support NVIDIA SLI or AMD CrossFire multi-GPU configurations when using compatible hardware and drivers. Three additional PCI-E x1 slots provide expansion for sound cards, capture devices, network adapters, or other peripheral cards. All expansion slots feature reinforced construction to support heavier graphics cards without stressing the motherboard PCB.

Storage Interface Options

Eight SATA 3.0 ports operating at 6Gb/s support conventional hard drives and SSDs in various RAID configurations through the chipset's built-in controller. Additionally, one M.2 PCIe NVMe interface provides direct PCI Express connectivity for next-generation solid-state drives, bypassing SATA bandwidth limitations for significantly faster storage performance. This full-speed M.2 slot supports both SATA and PCIe-based M.2 devices, though users should verify specific drive compatibility before purchase.

Connectivity and System Features

Beyond core computing components, the motherboard includes various connectivity options and diagnostic features to simplify system building and troubleshooting.

Rear I/O and Integrated Components

The rear panel includes four USB 3.0 ports and two USB 2.0 ports for peripheral connectivity, plus a PS/2 combination port supporting legacy keyboards and mice. One RJ45 Gigabit Ethernet port connects via the integrated Realtek RTL8111H controller, while 7.1 channel audio jacks provide outputs for multi-speaker surround sound systems. The board also features internal headers for additional USB 2.0 and USB 3.0 ports, with pinouts following standard motherboard conventions.

Diagnostic and Enhancement Features

A digital fault diagnosis display provides two-digit POST code readouts during system boot, helping identify hardware issues through standard error codes. An integrated buzzer offers audible confirmation of successful POST completion or specific error conditions. The board includes an interface for WiFi expansion cards and features eight RGB LED audio path lighting that responds to audio signals. Four distinct power phases with solid capacitor components deliver stable voltage to the CPU and memory subsystems.
